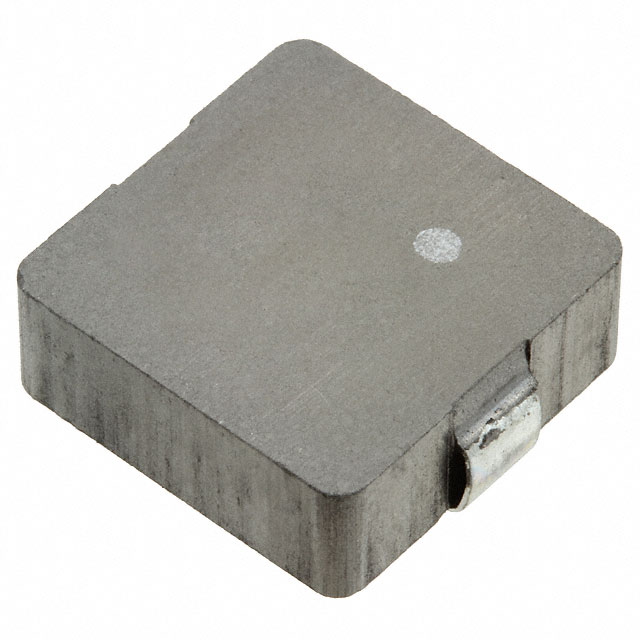

MPCH1250L1R5

Manufacturer :

KEMET

Product Category :

Fixed Inductors

Operating Temperature :

-20°C~120°C

Terminal Placement :

DUAL ENDED

Factory Lead Time :

29 Weeks

Number of Terminations :

2

Mounting Type :

Surface Mount

DC Resistance (DCR) :

2.2mOhm Max

RoHS Status :

ROHS3 Compliant

Tolerance :

±20%

Inductor Application :

POWER INDUCTOR

Inductance Tolerance :

20%

Package / Case :

Nonstandard

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tape and Reel (TR)

Height Seated (Max) :

0.197 5.00mm

ECCN Code :

EAR99

Published :

2004

Inductor Type :

GENERAL PURPOSE INDUCTOR

Current Rating (Amps) :

21A

Surface Mount :

yes

Inductance :

1.5μH

Size / Dimension :

0.563Lx0.492W 14.30mmx12.50mm

Inductance Frequency - Test :

100kHz

Series :

MPCH

Rated Current-Max :

21A

Terminal Shape :

WRAPAROUND

Number of Functions :

1

Material - Core :

Metal Composite

Test Frequency :

0.1MHz

Shape/Size Description :

RECTANGULAR PACKAGE

Shielding :

Shielded

HTS Code :

8504.50.80.00
