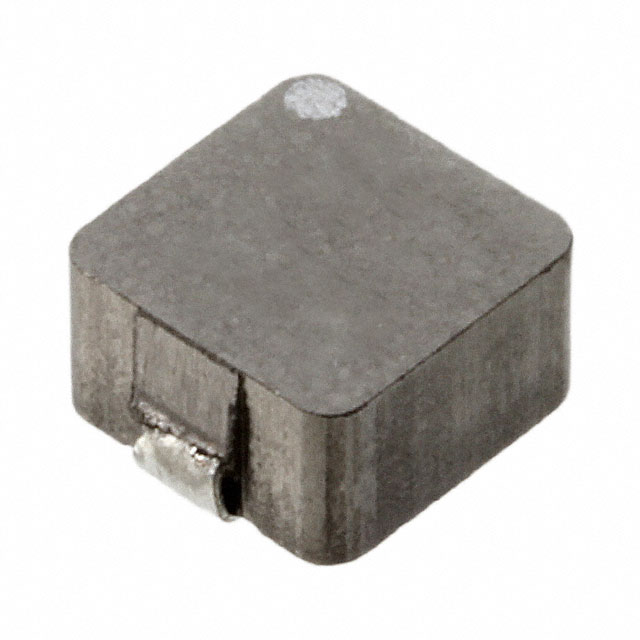

MPCH0740LR15
Or copy the link below:
- Mfr.Part #
- MPCH0740LR15
- Manufacturer
- KEMET
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- FIXED IND 150NH 29A 0.93MOHM SMD
- Stock
- 8,860
- In Stock ：
- 8,860
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- KEMET
- Product Category :
- Fixed Inductors
- Operating Temperature :
- -20°C~120°C
- Inductor Type :
- GENERAL PURPOSE INDUCTOR
- Current Rating (Amps) :
- 29A
- Number of Terminations :
- 2
- Factory Lead Time :
- 29 Weeks
- Height Seated (Max) :
- 0.157 4.00mm
- Terminal Shape :
- WRAPAROUND
- Tolerance :
- ±20%
- Inductor Application :
- POWER INDUCTOR
- Shape/Size Description :
- RECTANGULAR PACKAGE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material - Core :
- Metal Composite
- Published :
- 2013
- ECCN Code :
- EAR99
- Inductance Tolerance :
- 20%
- Surface Mount :
- yes
- DC Resistance (DCR) :
- 0.93mOhm
- Mounting Type :
- Surface Mount
- RoHS Status :
- ROHS3 Compliant
- Current - Saturation :
- 31A
- Terminal Placement :
- DUAL ENDED
- Series :
- MPCH
- Shielding :
- Shielded
- Size / Dimension :
- 0.315Lx0.264W 8.00mmx6.70mm
- Number of Functions :
- 1
- HTS Code :
- 8504.50.80.00
- Inductance Frequency - Test :
- 100kHz
- Inductance :
- 150nH
- Rated Current-Max :
- 29A
- Test Frequency :
- 0.1MHz
- Package / Case :
- Nonstandard
- Packaging :
- Tape and Reel (TR)
- Datasheets
- MPCH0740LR15
MPCH0740LR15 datasheet pdf and Fixed Inductors product details from KEMET stock available at
