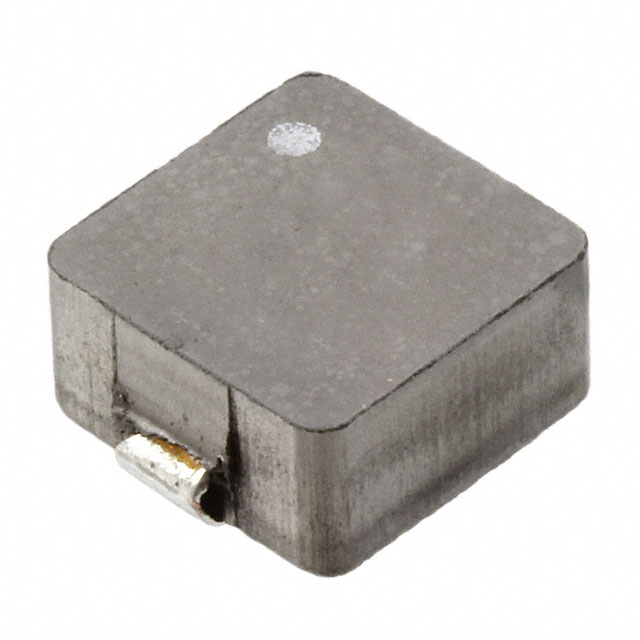

MPCH1055L1R3

Manufacturer :

KEMET

Product Category :

Fixed Inductors

Published :

2011

Rated Current-Max :

18.5A

DC Resistance (DCR) :

2.3MOhm

Surface Mount :

yes

RoHS Status :

ROHS3 Compliant

Inductor Application :

POWER INDUCTOR

Number of Functions :

1

Terminal Shape :

WRAPAROUND

Shielding :

Shielded

Operating Temperature :

-20°C~120°C

Test Frequency :

0.1MHz

Number of Terminations :

2

Mounting Type :

Surface Mount

Size / Dimension :

0.461Lx0.394W 11.70mmx10.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

MPCH

Inductance Tolerance :

20%

Tolerance :

±20%

Packaging :

Tape and Reel (TR)

Inductance Frequency - Test :

100kHz

Current Rating (Amps) :

18.5A

Current - Saturation :

17A

ECCN Code :

EAR99

Inductor Type :

GENERAL PURPOSE INDUCTOR

HTS Code :

8504.50.80.00

Inductance :

1.3μH

Height Seated (Max) :

0.217 5.50mm

Factory Lead Time :

29 Weeks

Shape/Size Description :

RECTANGULAR PACKAGE

Package / Case :

Nonstandard

Material - Core :

Metal Composite

Terminal Placement :

DUAL ENDED
