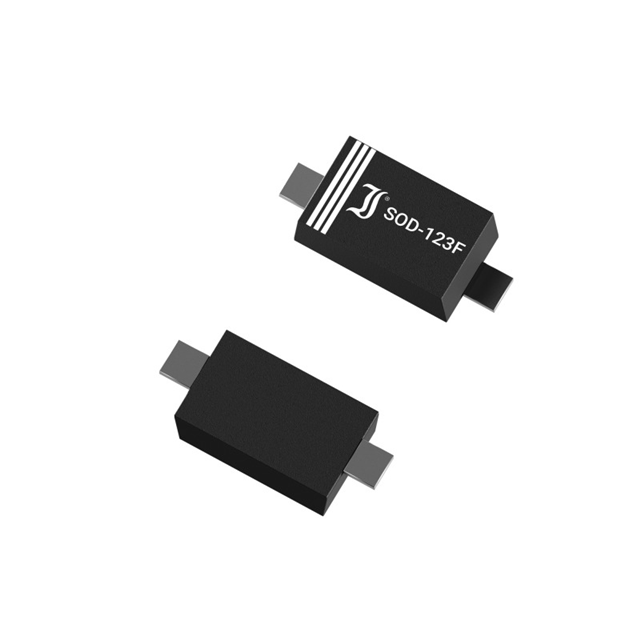

MMSZ5248B
Or copy the link below:
- Mfr.Part #
- MMSZ5248B
- Manufacturer
- Diotec Semiconductor
- Package / Case
- SOD-123
- Datasheet
- Download
- Description
- ZENERDIODE, SOD-123, 16.80V~18V,
- Stock
- 485
- In Stock ：
- 485
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Diotec Semiconductor
- Product Category :
- Diodes - Zener - Single
- Lead Free :
- Lead Free
- Number of Elements :
- 1
- Contact Plating :
- Tin
- Diode Element Material :
- SILICON
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Diode Type :
- ZENER DIODE
- Voltage - Forward (Vf) (Max) @ If :
- 900mV @ 10mA
- Operating Temperature :
- -65°C~150°C
- Impedance-Max :
- 21Ohm
- Power Dissipation :
- 500mW
- Length :
- 3.85mm
- Reverse Test Voltage :
- 14V
- Terminal Position :
- Dual
- Element Configuration :
- Single
- Impedance :
- 21Ohm
- Package / Case :
- SOD-123
- Zener Current :
- 100nA
- Termination :
- SMD/SMT
- Number of Terminations :
- 2
- Pbfree Code :
- yes
- Power Rating :
- 500mW
- HTS Code :
- 8541.10.00.50
- Mount :
- Surface Mount
- Weight :
- 10.007382mg
- Voltage - Rated DC :
- 18V
- Reference Voltage :
- 18V
- Peak Reverse Current :
- 100nA
- Mounting Type :
- Surface Mount
- ESD Protection :
- No
- Polarity :
- Unidirectional
- Pin Count :
- 2
- ECCN Code :
- EAR99
- Max Power Dissipation :
- 500mW
- Packaging :
- Tape and Reel (TR)
- Published :
- 2008
- Base Part Number :
- MMSZ5248B
- RoHS Status :
- ROHS3 Compliant
- Width :
- 1.7mm
- Voltage Tol-Max :
- 5%
- Test Current :
- 7mA
- Height :
- 1.35mm
- Working Voltage :
- 18V
- Max Reverse Leakage Current :
- 100nA
- JESD-609 Code :
- e3
- Terminal Form :
- Gull wing
- Factory Lead Time :
- 19 Weeks
- Tolerance :
- ±5%
- Zener Voltage :
- 18V
- Current - Reverse Leakage @ Vr :
- 100nA @ 14V
- Voltage Tolerance :
- 5%
- Number of Pins :
- 2
- Forward Voltage :
- 900mV
- Datasheets
- MMSZ5248B
ZENER DIODE 21Ohm ±5% 18V 100nA @ 14V -65°C~150°C 500mW 2 Terminations SOD-123
