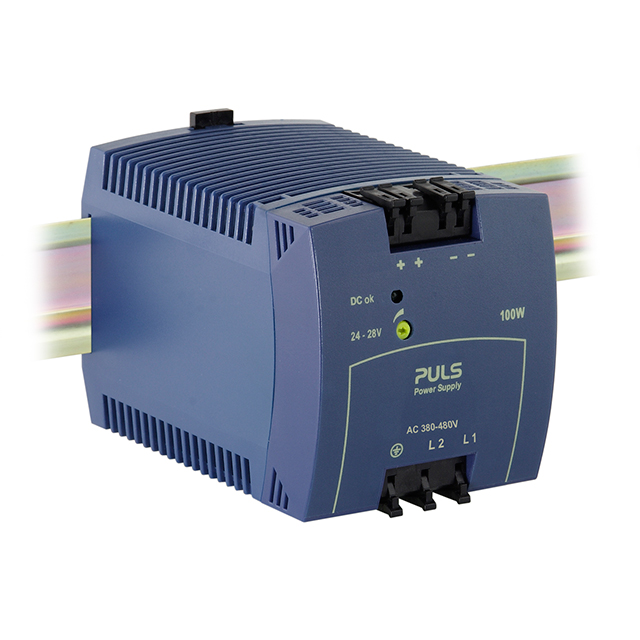

ML100.200

Manufacturer :

PULS

Product Category :

Trim/Adjustable Output :

yes

Terminal Position :

UNSPECIFIED

Operating Temperature :

-40°C~70°C With Derating

Weight :

360g

Mount :

DIN Rail

Input Voltage-Nom :

380V

Size / Dimension :

4.06Lx2.87W x 2.95 H 103.0mmx73.0mmx75.0mm

Approval Agency :

CB, CE, cULus, cURus

Type :

Enclosed

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Outputs :

1

Output Current :

4.2A

Efficiency :

90%

Min Input Voltage :

380V

JESD-30 Code :

R-XXMA-X8

Mounting Type :

DIN Rail

Power (Watts) :

100W

Depth :

75mm

Number of Functions :

1

Max Input Voltage :

480V

RoHS Status :

RoHS Compliant

Feature :

Adjustable Output, DC Input Capable, Load Sharing

Output Voltage :

24V

Number of Terminations :

8

Package / Case :

100

Min Output Voltage :

24V

Series :

MiniLine (100W)

Voltage - Input :

380V~480VAC 2 Phase

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Max Output Voltage :

28V

Applications :

ITE (Commercial)

Current - Output 1 :

4.2A

Factory Lead Time :

2 Weeks

Pbfree Code :

yes

Terminal Form :

UNSPECIFIED
