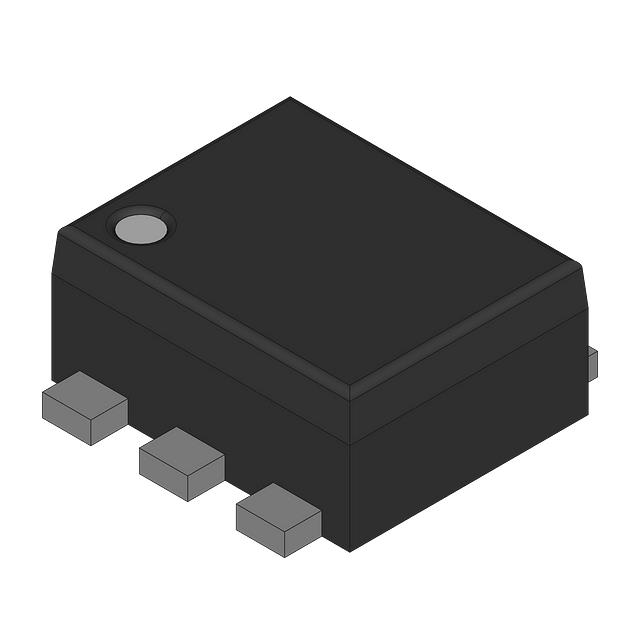

MCH6342-TL-H

Manufacturer :

onsemi

Product Category :

Transistors - FETs, MOSFETs - Single

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tape and Reel (TR)

Length :

2mm

Operating Temperature :

150°C TJ

Height :

850μm

Rds On (Max) @ Id, Vgs :

73m Ω @ 2A, 4.5V

Power Dissipation-Max :

1.5W Ta

Drive Voltage (Max Rds On,Min Rds On) :

1.8V 4.5V

Terminal Finish :

Tin/Bismuth (Sn/Bi)

JESD-609 Code :

e6

Halogen Free :

Halogen Free

Vgs (Max) :

±10V

Width :

1.6mm

Rise Time :

28ns

Surface Mount :

yes

Radiation Hardening :

No

Package / Case :

6-SMD, Flat Leads

Drain to Source Voltage (Vdss) :

30V

Fall Time (Typ) :

60 ns

Element Configuration :

Single

Continuous Drain Current (ID) :

4.5A

Lead Free :

Lead Free

Turn-Off Delay Time :

100 ns

Published :

2009

Current - Continuous Drain (Id) @ 25°C :

4.5A Ta

Number of Pins :

6

Factory Lead Time :

10 Weeks

Pbfree Code :

yes

RoHS Status :

RoHS Compliant

ECCN Code :

EAR99

FET Type :

P-Channel

Gate Charge (Qg) (Max) @ Vgs :

8.6nC @ 4.5V

Lifecycle Status :

LAST SHIPMENTS (Last Updated: 1 week ago)

Gate to Source Voltage (Vgs) :

10V

Pin Count :

6

Mounting Type :

Surface Mount

Power Dissipation :

1.5W

Input Capacitance (Ciss) (Max) @ Vds :

650pF @ 10V

Drain to Source Breakdown Voltage :

-30V

Turn On Delay Time :

8.2 ns
