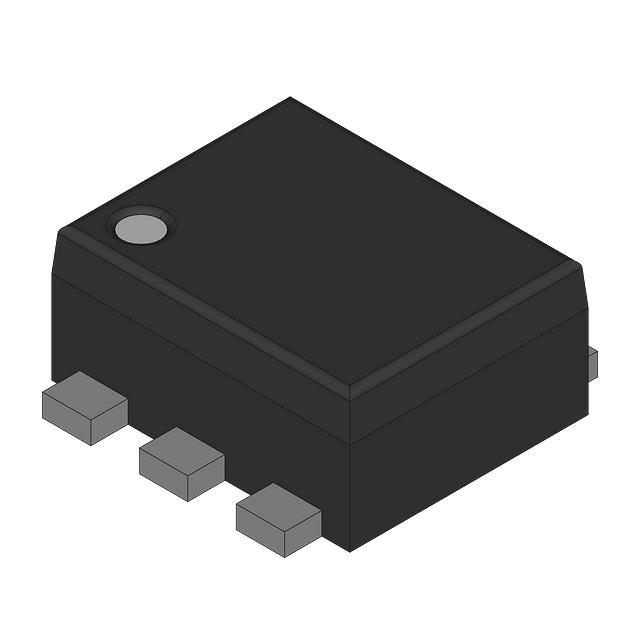

MCH6336-TL-E

Manufacturer :

Sanyo

Product Category :

Transistors - FETs, MOSFETs - Single

Current - Continuous Drain (Id) @ 25°C :

5A Ta

RoHS Status :

RoHS Compliant

Turn On Delay Time :

7.4 ns

FET Type :

P-Channel

Surface Mount :

yes

Power Dissipation-Max :

1.5W Ta

Pin Count :

6

Rds On (Max) @ Id, Vgs :

43m Ω @ 3A, 4.5V

Drain to Source Voltage (Vdss) :

12V

Length :

2mm

Gate to Source Voltage (Vgs) :

10V

Pbfree Code :

yes

ECCN Code :

EAR99

Mounting Type :

Surface Mount

Number of Pins :

6

Package / Case :

6-SMD, Flat Leads

Published :

2012

Rise Time :

57ns

Fall Time (Typ) :

69 ns

Lifecycle Status :

LAST SHIPMENTS (Last Updated: 1 week ago)

Terminal Finish :

Tin/Bismuth (Sn/Bi)

Width :

1.6mm

Gate Charge (Qg) (Max) @ Vgs :

6.9nC @ 4.5V

Drain Current-Max (Abs) (ID) :

5A

Height :

850μm

Drive Voltage (Max Rds On,Min Rds On) :

1.8V 4.5V

Vgs (Max) :

±10V

Continuous Drain Current (ID) :

5A

Radiation Hardening :

No

Power Dissipation :

1.5W

Turn-Off Delay Time :

72 ns

Element Configuration :

Single

JESD-609 Code :

e6

Input Capacitance (Ciss) (Max) @ Vds :

660pF @ 6V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Vgs(th) (Max) @ Id :

1.4V @ 1mA

Operating Temperature :

150°C TJ

Lead Free :

Lead Free

Packaging :

Tape and Reel (TR)
