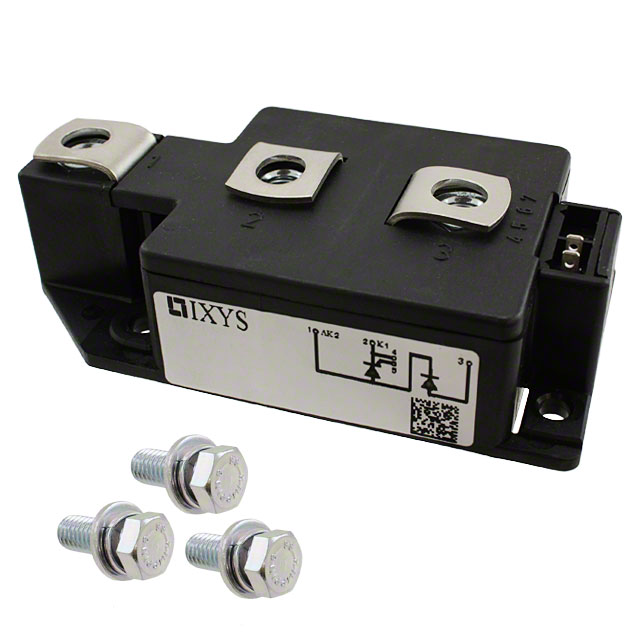

MCD250-16IO1

Manufacturer :

Littelfuse

Product Category :

Thyristors - SCRs - Modules

Manufacturer :

IXYS

Trigger Device Type :

SCR

Surface Mount :

No

Voltage - Gate Trigger (Vgt) (Max) :

2V

Width :

60mm

Current - Gate Trigger (Igt) (Max) :

150mA

Additional Feature :

UL RECOGNIZED

Voltage - Off State :

1.6kV

RMS Current (Irms) :

450A

Product Status :

Obsolete

Case Connection :

Isolated

Terminal Position :

UPPER

Repetitive Peak Reverse Voltage :

1600 V

Number of Pins :

5

HTS Code :

8541.30.00.80

Pin Count :

5

Factory Lead Time :

32 Weeks

Current - On State (It (RMS)) (Max) :

450A

Current - On State (It (AV)) (Max) :

287A

Package / Case :

Y2-DCB

Pbfree Code :

yes

Terminal Form :

UNSPECIFIED

DC Gate Trigger Voltage-Max :

3 V

Repetitive Peak Off-state Voltage :

1600V

Length :

116mm

Package :

Bulk

Holding Current-Max :

150 mA

Number of Terminals :

5

Configuration :

SINGLE WITH BUILT-IN DIODE

Published :

2004

Leakage Current (Max) :

40mA

Mounting Type :

Chassis Mount

Operating Temperature :

-40°C~140°C TJ

Height :

30mm

Current - Hold (Ih) (Max) :

150mA

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Reach Compliance Code :

Compliant

Non-Repetitive Pk On-state Cur :

9000 A

On-State Current-Max :

287000A

Desc. of Screw Terminals :

A-K-AK

Number of Elements :

1

Structure :

Series Connection - SCR/Diode

Series :

--

Number of Terminations :

5

Mount :

Chassis Mount, Screw

Base Part Number :

MC*250

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package Shape :

RECTANGULAR

RMS On-state Current-Max :

450 A

Qualification Status :

Not Qualified

Number of SCRs, Diodes :

1 SCR, 1 Diode

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Packaging :

Bulk

DC Gate Trigger Current-Max :

150 mA

Desc. of Quick-Connects :

G-GR

RoHS Status :

ROHS3 Compliant

Current - Non Rep. Surge 50, 60Hz (Itsm) :

9000A 9600A

Max Repetitive Reverse Voltage (Vrrm) :

1.6kV

Hold Current :

150mA

JESD-30 Code :

R-XUFM-X5

Base Product Number :

MCD250
