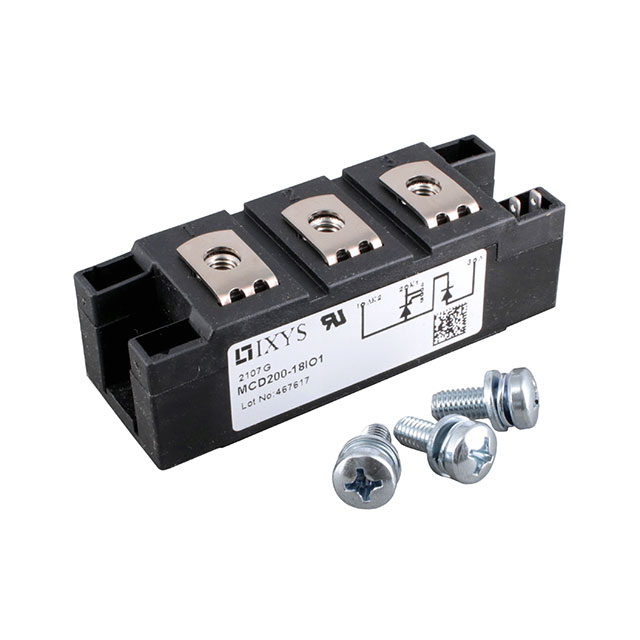

MCD200-18IO1

Manufacturer :

Littelfuse

Product Category :

Thyristors - SCRs - Modules

Terminal Form :

UNSPECIFIED

Current - Non Rep. Surge 50, 60Hz (Itsm) :

8000A 8600A

Holding Current-Max :

150 mA

Mounting Type :

Chassis Mount

Desc. of Quick-Connects :

G-GR

Current - On State (It (AV)) (Max) :

216A

Number of Terminations :

5

Brand :

IXYS

Repetitive Peak Off-state Voltage :

1800V

Current - Gate Trigger (Igt) (Max) :

150 mA

Packaging :

Bulk

RoHS :

Details

RMS Current (Irms) :

340A

Repetitive Peak Reverse Voltage :

1800 V

Series :

-

Structure :

Series Connection - SCR/Diode

Non-Repetitive Pk On-state Cur :

8640 A

DC Gate Trigger Current-Max :

150 mA

Current - On State (It (RMS)) (Max) :

340A

Surface Mount :

No

Product Type :

Discrete Semiconductor Modules

Base Part Number :

MC*200

Maximum Operating Temperature :

+ 100 C

Manufacturer :

IXYS

Factory Lead Time :

24 Weeks

Trigger Device Type :

SCR

Package / Case :

Y4-M6

Additional Feature :

UL RECOGNIZED

Reach Compliance Code :

Compliant

Mounting Style :

Screw Mounts

Product :

Thyristor Power Modules

Technology :

Si

HTS Code :

8541.30.00.80

Base Product Number :

MCD200

Case Connection :

Isolated

Operating Temperature :

-40°C~125°C TJ

Number of Elements :

1

Type :

Phase Leg

Qualification Status :

Not Qualified

Package :

Bulk

Voltage - Off State :

1.8 kV

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Desc. of Screw Terminals :

A-K-AK

RoHS Status :

ROHS3 Compliant

Configuration :

SINGLE WITH BUILT-IN DIODE

Number of SCRs, Diodes :

1 SCR, 1 Diode

Package Shape :

RECTANGULAR

DC Gate Trigger Voltage-Max :

3 V

Published :

2004

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Gate Trigger (Vgt) (Max) :

2V

Product Status :

Active

Minimum Operating Temperature :

- 40 C

Pin Count :

5

Current - Hold (Ih) (Max) :

150 mA

On-State Current-Max :

216000A

Number of Pins :

5

Reverse Voltage :

1.8kV

Number of Terminals :

5

RMS On-state Current-Max :

340 A

Hold Current :

150mA

Mount :

Chassis Mount, Screw

Vf - Forward Voltage :

1.1 V

Pbfree Code :

yes

JESD-30 Code :

R-XUFM-X5

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Product Category :

Discrete Semiconductor Modules

Terminal Position :

UPPER
