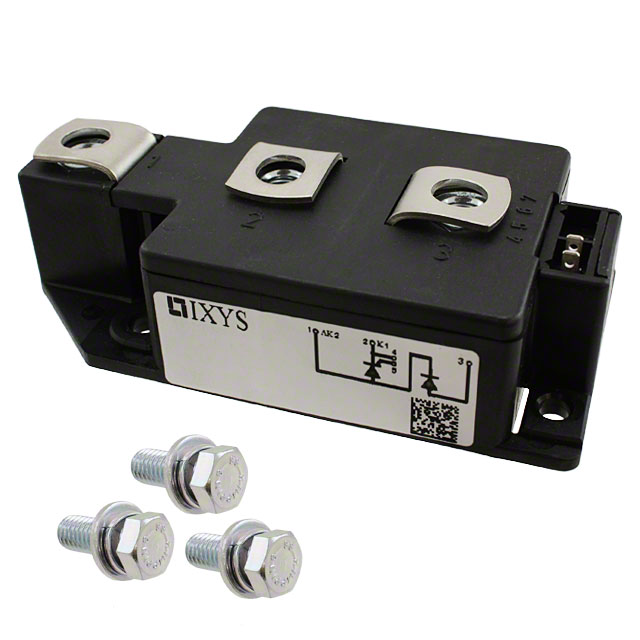

MCD220-08IO1

Manufacturer :

Littelfuse

Product Category :

Thyristors - SCRs - Modules

RMS On-state Current-Max :

400 A

Package Shape :

RECTANGULAR

Base Product Number :

MCD220

Repetitive Peak Reverse Voltage :

800 V

Package :

Bulk

Current - Non Rep. Surge 50, 60Hz (Itsm) :

8500A 9000A

DC Gate Trigger Current-Max :

150 mA

Non-Repetitive Pk On-state Cur :

8500 A

Current - Gate Trigger (Igt) (Max) :

150mA

Holding Current-Max :

150 mA

Leakage Current (Max) :

40mA

Operating Temperature :

-40°C~140°C TJ

Base Part Number :

MC*220

Manufacturer :

IXYS Corporation

Series :

--

Package / Case :

Y2-DCB

Pbfree Code :

yes

Number of Pins :

5

Terminal Position :

UPPER

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Elements :

1

Terminal Form :

UNSPECIFIED

Number of Terminals :

5

Number of SCRs, Diodes :

1 SCR, 1 Diode

Additional Feature :

UL RECOGNIZED

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

32 Weeks

Voltage - Gate Trigger (Vgt) (Max) :

2V

DC Gate Trigger Voltage-Max :

3 V

Voltage - Off State :

800V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current - On State (It (AV)) (Max) :

250A

Current - Hold (Ih) (Max) :

150mA

Product Status :

Active

Mounting Type :

Chassis Mount

Reach Compliance Code :

Compliant

Surface Mount :

No

Qualification Status :

Not Qualified

Trigger Device Type :

SCR

Case Connection :

Isolated

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Published :

2004

Current - On State (It (RMS)) (Max) :

400A

Number of Terminations :

5

Desc. of Screw Terminals :

A-K-AK

Mount :

Chassis Mount, Screw

Packaging :

Bulk

Hold Current :

150mA

Configuration :

SINGLE WITH BUILT-IN DIODE

Repetitive Peak Off-state Voltage :

800 V

HTS Code :

8541.30.00.80

JESD-30 Code :

R-XUFM-X5

Reverse Voltage :

800V

Structure :

Series Connection - SCR/Diode

RMS Current (Irms) :

400A

Pin Count :

5

Desc. of Quick-Connects :

G-GR
