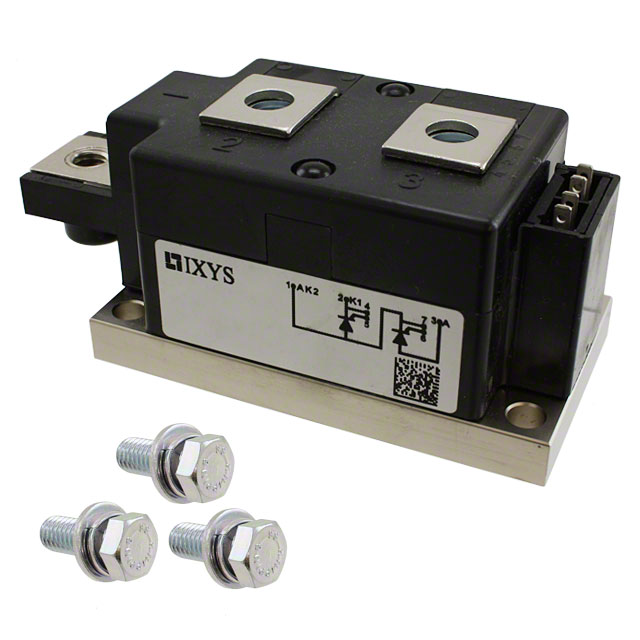

MCC255-16IO1

Manufacturer :

Littelfuse

Product Category :

Thyristors - SCRs - Modules

Current - Non Rep. Surge 50, 60Hz (Itsm) :

9000A 9600A

Number of SCRs, Diodes :

2 SCRs

Non-Repetitive Pk On-state Cur :

9600 A

Configuration :

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Dimensions :

115 x 50 x 49mm

Package Type :

Y1 CU

Base Product Number :

MCC255

Pin Count :

7

Trigger Device Type :

SCR

Number of Pins :

7

Height :

49mm

Number of Terminations :

7

Reach Compliance Code :

Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reverse Voltage :

1.6kV

RMS Current (Irms) :

450A

Series :

--

RoHS Status :

ROHS3 Compliant

Qualification Status :

Not Qualified

Holding Current-Max :

150 mA

Hold Current :

150mA

Brand :

IXYS

JESD-30 Code :

R-XUFM-X7

Terminal Position :

UPPER

Type :

Phase Leg

Surface Mount :

No

Number of Elements :

2

Current - Gate Trigger (Igt) (Max) :

150mA

Desc. of Quick-Connects :

2G-2GR

On-State Current-Max :

250000A

Product Category :

Discrete Semiconductor Modules

Mount :

Chassis Mount, Panel, Screw

Width :

50mm

Voltage - Off State :

1.6kV

Maximum Operating Temperature :

+130 °C

Minimum Operating Temperature :

-40 °C

Voltage - Gate Trigger (Vgt) (Max) :

2V

Factory Lead Time :

28 Weeks

Mounting Type :

Chassis Mount

DC Gate Trigger Voltage-Max :

2 V

Current - On State (It (AV)) (Max) :

250A

RoHS :

Details

Repetitive Peak Off-state Voltage :

1600V

Vf - Forward Voltage :

1.36 V

Package Shape :

RECTANGULAR

Product :

Thyristor Power Modules

Package :

Bulk

RMS On-state Current-Max :

450 A

Packaging :

Bulk

Repetitive Peak Reverse Voltage :

1600V

Base Part Number :

MC*255

Technology :

Si

Product Status :

Active

Case Connection :

Isolated

Current - Hold (Ih) (Max) :

150mA

Published :

2006

Leakage Current (Max) :

40mA

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

DC Gate Trigger Current-Max :

150 mA

Mounting Style :

Screw Mounts

Length :

115mm

Pbfree Code :

yes

Current - On State (It (RMS)) (Max) :

450A

Terminal Form :

UNSPECIFIED

Number of Terminals :

7

Lead Free :

Lead Free

Structure :

Series Connection - All SCRs

Max Repetitive Reverse Voltage (Vrrm) :

1.6kV

Desc. of Screw Terminals :

A-K-AK

Operating Temperature :

-40°C~140°C TJ

Manufacturer :

IXYS

Radiation Hardening :

No

HTS Code :

8541.30.00.80

Product Type :

Discrete Semiconductor Modules

Package / Case :

Y1-CU

Additional Feature :

UL RECOGNIZED
