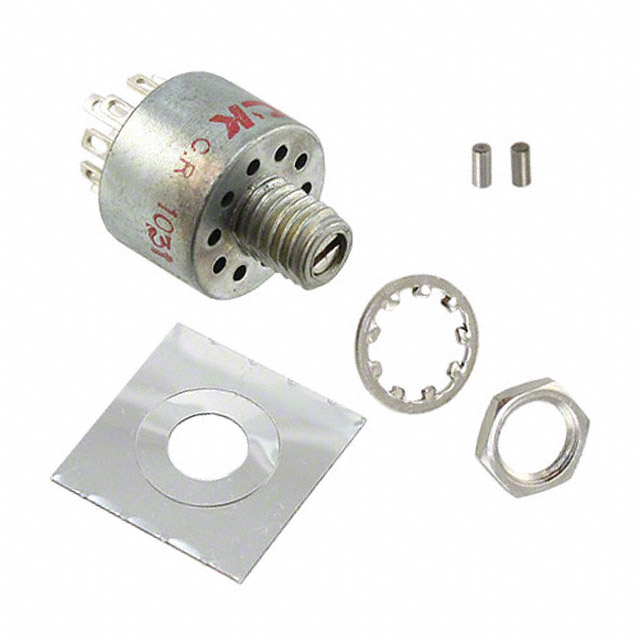

MB00L2NZQD

Manufacturer :

C&K

Product Category :

Actuator Length :

Flush

Voltage - Rated DC :

28V

Contact Material :

COPPER ALLOY

Current Rating (Amps) :

250mA AC/DC

Termination :

Lug

Max Voltage Rating (AC) :

125V

Circuit per Deck :

DP5T

Termination Style :

Solder Lug

Current Rating :

250mA

Length :

13.34mm

RoHS Status :

ROHS3 Compliant

Index Stops :

Continuous

Max Voltage Rating (DC) :

28V

Max Operating Temperature :

85°C

Operating Force :

2.880 ~ 5.041gfm

Min Operating Temperature :

-30°C

Voltage - Rated AC :

125V

Contact Style :

Non-Shorting

Mount :

Panel

Number of Decks :

1

Packaging :

Bulk

Actuator Type :

Screwdriver Slot

Number of Positions :

5

Depth Behind Panel :

14.86mm

Housing Material :

Zinc

Number of Poles per Deck :

2

Contact Timing :

Non-Shorting (BBM)

Factory Lead Time :

20 Weeks

Depth :

13.34mm

Actuator Material :

Stainless Steel

Panel Cutout Dimensions :

Circular - 6.60mm Dia

Mounting Type :

Panel Mount

Radiation Hardening :

No

Index Angle :

36 °

Electrical Life :

10000 Cycles

Series :

M

Max Current Rating :

250mA

Orientation :

Straight

Contact Finish :

Silver

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
