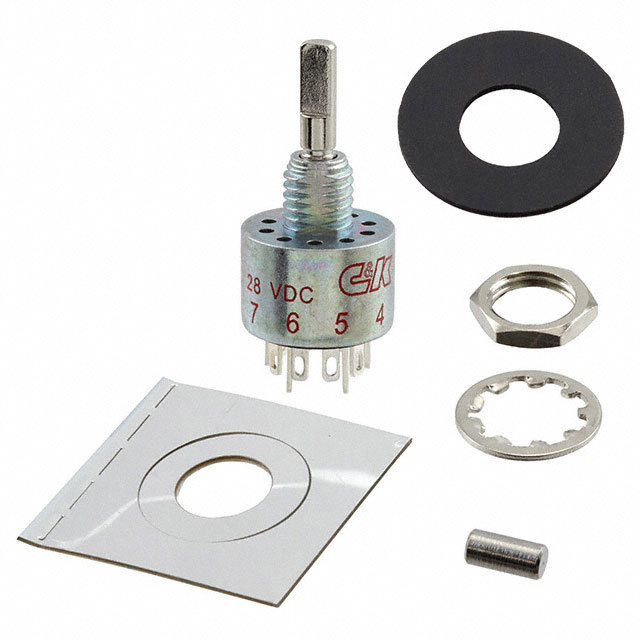

MB00L1NZQF

Manufacturer :

C&K

Product Category :

Termination :

Solder

Voltage - Rated DC :

28V

Series :

M

Published :

2014

Termination Style :

Solder Lug

Voltage - Rated AC :

125V

Number of Positions :

5

Min Operating Temperature :

-30°C

Factory Lead Time :

20 Weeks

Operating Force :

2.880 ~ 5.041gfm

Depth :

13.34mm

Current Rating :

250mA

Current Rating (Amps) :

250mA AC/DC

Contact Style :

Non-Shorting

Length :

13.34mm

Max Operating Temperature :

85°C

Housing Material :

Zinc

Panel Cutout Dimensions :

Circular - 6.60mm Dia

Number of Poles per Deck :

2

Contact Material :

COPPER ALLOY

Actuator Length :

10.16mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Panel

Depth Behind Panel :

14.86mm

Electrical Life :

10000 Cycles

Number of Decks :

1

Contact Timing :

Non-Shorting (BBM)

Mounting Type :

Panel Mount

Circuit per Deck :

DP5T

Index Angle :

36 °

Index Stops :

Continuous

Feature :

IP67 - Dust Tight, Waterproof

Actuator Type :

Flatted (3.17mm Dia)

Max Voltage Rating (DC) :

28V

Contact Finish :

Silver

Radiation Hardening :

No

Max Voltage Rating (AC) :

125V

Orientation :

Straight

RoHS Status :

ROHS3 Compliant

Actuator Material :

Stainless Steel

Max Current Rating :

250mA
