MB00L2NCGD

Share

Or copy the link below:

Mfr.Part #
MB00L2NCGD
Manufacturer
C&K
Package / Case
Datasheet
Download
Description
SWITCH ROTARY 5POS 250MA 125V
Stock
30,386
In Stock :
30,386

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
C&K
Product Category :
Termination :
PC Pins
Panel Cutout Dimensions :
Circular - 6.60mm Dia
Mount :
Panel, Through Hole
Published :
2014
Operating Force :
2.880 ~ 5.041gfm
Number of Positions :
5
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Number of Decks :
1
Housing Material :
Zinc
Voltage - Rated DC :
28V
Number of Poles per Deck :
2
Current Rating (Amps) :
250mA AC/DC
Actuator Type :
Screwdriver Slot
Min Operating Temperature :
-30°C
Current Rating :
250mA
Depth Behind Panel :
10.42mm
Index Stops :
Continuous
Series :
M
Contact Plating :
Gold, Silver
Max Voltage Rating (DC) :
28V
Max Voltage Rating (AC) :
125V
Termination Style :
PC Pin
Orientation :
Straight
Mounting Type :
Panel Mount, Through Hole
Electrical Life :
10000 Cycles
Voltage - Rated AC :
125V
Contact Material :
COPPER ALLOY
Max Current Rating :
250mA
Circuit per Deck :
DP5T
RoHS Status :
ROHS3 Compliant
Max Operating Temperature :
85°C
Contact Timing :
Non-Shorting (BBM)
Index Angle :
36 °
Depth :
13.34mm
Actuator Material :
Stainless Steel
Contact Finish :
Gold
Actuator Length :
Flush
Contact Style :
Non-Shorting
Throw Configuration :
DP, DP5T
Factory Lead Time :
20 Weeks
Length :
13.34mm
Introducing C&K MB00L2NCGD from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Panel Mount, Through Hole, MB00L2NCGD pinout, MB00L2NCGD datasheet PDF, MB00L2NCGD amp .Beyond C&K MB00L2NCGD ,we also offer F9TYP5E5EANF093, F9TYP5E5EANF094, F9TYP5E5EANF095, Our vast inventory has you covered. Contact us now for immediate solutions.

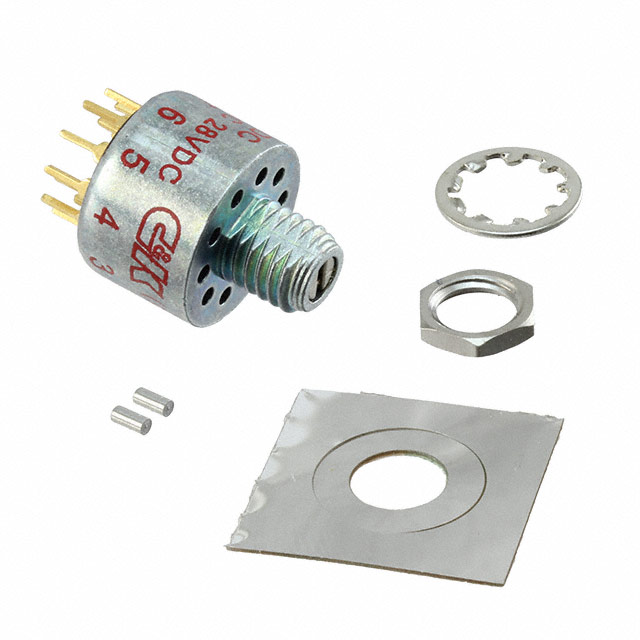

C&K MB00L2NCGD
