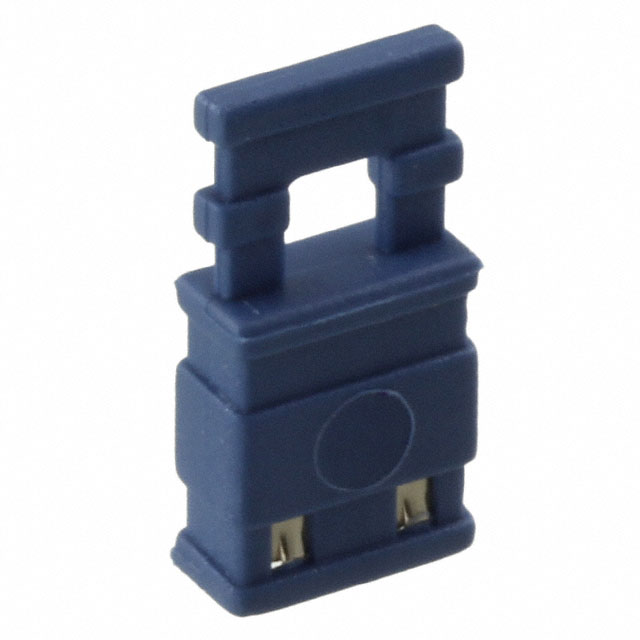

M7687-05

Manufacturer :

Harwin

Product Category :

Shunts, Jumpers

Reference Standard :

UL

Published :

2006

Contact Gender :

FEMALE

Number of Rows :

1

RoHS Status :

ROHS3 Compliant

Gender :

Female Sockets

Number of Positions or Pins (Grid) :

2 (1 x 2)

Lead Pitch :

2.54mm

Contact Pattern :

RECTANGULAR

Orientation :

Straight

Packaging :

Bulk

Weight :

45.359237g

Reliability :

COMMERCIAL

Pbfree Code :

yes

Color :

Blue

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

Height :

0.394 10.00mm

Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Contact Resistance :

3mOhm

Voltage - Rated AC :

250V

REACH SVHC :

No SVHC

Contact Finish Thickness :

5.11μin 0.130μm

Number of Contacts :

2

Width :

5mm

Plating Thickness :

5μin

Max Operating Temperature :

85°C

Current Rating :

3A

JESD-609 Code :

e4

Radiation Hardening :

No

Insulation Resistance :

1GOhm

Housing Material :

Polyester

Contact Material :

Bronze

Rated Current (Signal) :

3A

Max Current Rating :

3A

Series :

M76

Voltage - Rated DC :

250V

Contact Finish :

Gold

Body Breadth :

0.094 inch

Depth :

2.4mm

Length :

5mm

Max Voltage Rating (AC) :

250V

Type :

Closed Top, Grip

Mounting Option 1 :

LOCKING

Durability :

300 Cycles

Factory Lead Time :

9 Weeks

Pitch :

0.100 2.54mm

Min Operating Temperature :

-40°C

Contact Style :

BELLOWED TYPE

Body/Shell Style :

PLUG
