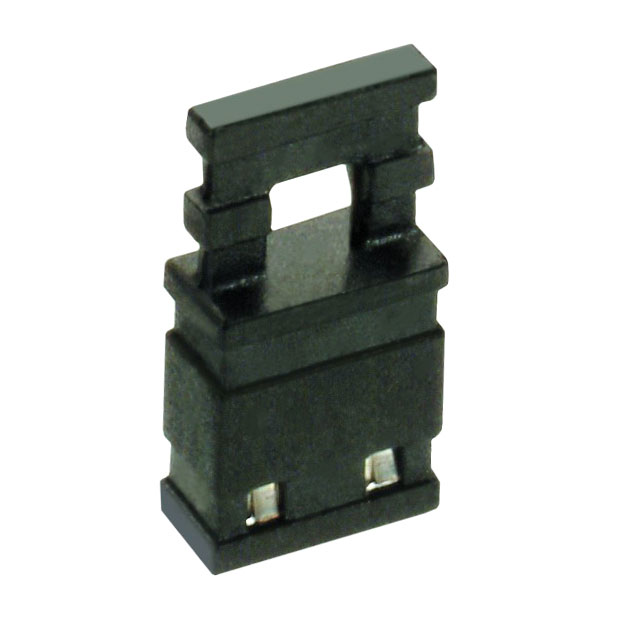

M7686-46

Manufacturer :

Harwin

Product Category :

Shunts, Jumpers

Orientation :

Straight

Height :

0.394 10.00mm

Contact Material :

Bronze

Contact Pattern :

RECTANGULAR

Additional Feature :

RoHS Compliant

Contact Finish Thickness :

118.1μin 3.00μm

Length :

5mm

Pitch :

0.100 2.54mm

Reference Standard :

UL

Material Flammability Rating :

UL94 V-0

Contact Style :

BELLOWED TYPE

Current Rating :

3A

Min Operating Temperature :

-40°C

Contact Gender :

FEMALE

Body Breadth :

0.094 inch

Flammability Rating :

UL94 V-0

Depth :

2.4mm

Series :

M76

Max Voltage Rating (AC) :

250V

Number of Contacts :

2

Max Current Rating :

3A

ECCN Code :

EAR99

Number of Positions or Pins (Grid) :

2 (1 x 2)

Number of Conductors :

ONE

RoHS Status :

ROHS3 Compliant

Contact Resistance :

30mOhm

Packaging :

Bulk

Insulation Resistance :

1GOhm

Housing Material :

Polyester

Color :

Black

Factory Lead Time :

9 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body/Shell Style :

PLUG

Pbfree Code :

yes

Rated Current (Signal) :

3A

Max Operating Temperature :

85°C

Durability :

50 Cycles

Mounting Option 1 :

LOCKING

Gender :

Female Sockets

Reliability :

COMMERCIAL

Contact Finish :

Tin

JESD-609 Code :

e3

Published :

2013

Type :

Closed Top, Grip

Number of Rows :

1
