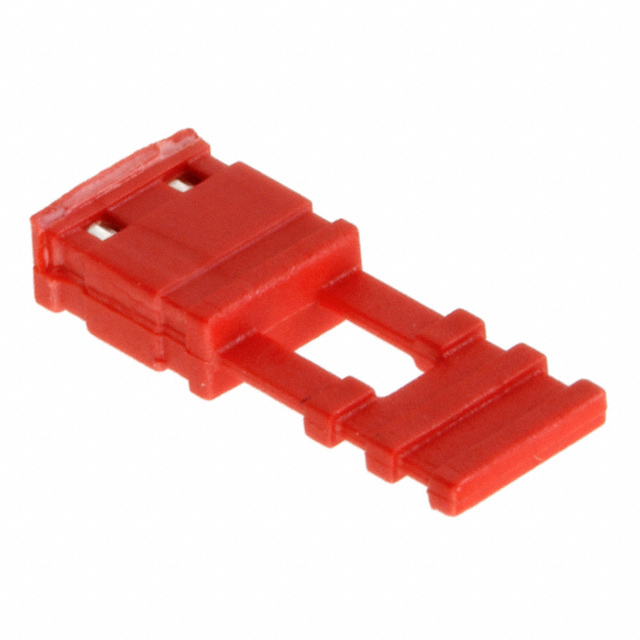

M7681-05

Manufacturer :

Harwin

Product Category :

Shunts, Jumpers

Contact Resistance :

3mOhm

Material Flammability Rating :

UL94 V-0

Reference Standard :

UL

Orientation :

Straight

Length :

5mm

Published :

2005

Plating Thickness :

5μin

Height :

0.551 14.00mm

Color :

Red

Pbfree Code :

yes

Rated Current (Signal) :

3A

Contact Material :

Bronze

Voltage - Rated AC :

250V

REACH SVHC :

No SVHC

Series :

M76

Gender :

Female Sockets

Depth :

2.4mm

Contact Gender :

FEMALE

Current Rating :

3A

Housing Material :

Polyester

Min Operating Temperature :

-40°C

Voltage - Rated DC :

250V

Max Current Rating :

3A

Contact Pattern :

RECTANGULAR

Contact Finish Thickness :

5.11μin 0.130μm

Contact Finish :

Gold

Weight :

45.359237g

Insulation Resistance :

1GOhm

Number of Rows :

1

Max Operating Temperature :

85°C

Max Voltage Rating (AC) :

250V

Number of Contacts :

2

Body/Shell Style :

PLUG

Durability :

300 Cycles

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Width :

5mm

Factory Lead Time :

13 Weeks

Reliability :

COMMERCIAL

JESD-609 Code :

e4

Number of Positions or Pins (Grid) :

2 (1 x 2)

Flammability Rating :

UL94 V-0

RoHS Status :

ROHS3 Compliant

Contact Style :

BELLOWED TYPE

Body Breadth :

0.094 inch

Number of Conductors :

ONE

Type :

Closed Top, Grip

Lead Pitch :

2.54mm

Radiation Hardening :

No

Pitch :

0.100 2.54mm

Packaging :

Bulk
