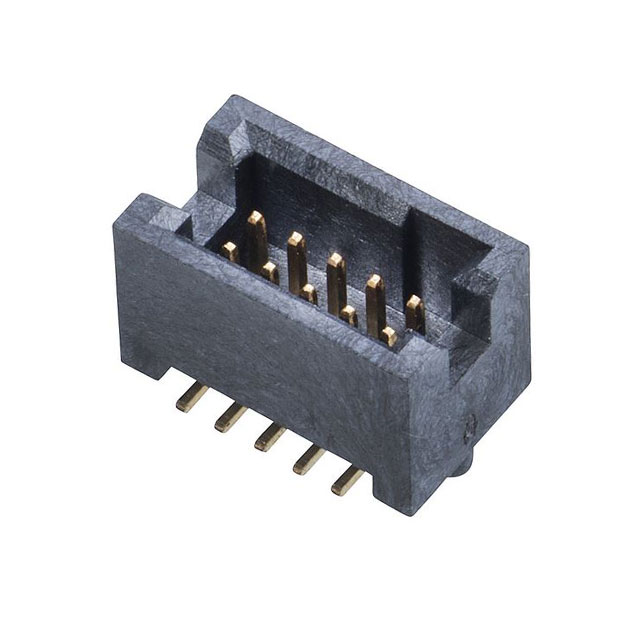

M50-4910545
Or copy the link below:
- Mfr.Part #
- M50-4910545
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 10POS 1.27MM
- Stock
- 2,825
- In Stock ：
- 2,825
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Factory Lead Time :
- 13 Weeks
- Reliability :
- COMMERCIAL
- Insulation Color :
- Black
- Mounting Option 1 :
- LOCKING
- Contact Type :
- Male Pin
- Published :
- 2016
- Total Number of Contacts :
- 10
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Insulation Height :
- 0.224 5.69mm
- Connector Type :
- Header
- Number Of PCB Rows :
- 2
- Material Flammability Rating :
- UL94 V-0
- ECCN Code :
- EAR99
- Number of Positions Loaded :
- All
- PCB Contact Pattern :
- RECTANGULAR
- Contact Shape :
- Square
- Packaging :
- Tube
- Board Mounting Option :
- PEG
- HTS Code :
- 8536.69.40.40
- Contact Material :
- Phosphor Bronze
- Series :
- Archer M50
- Fastening Type :
- Push-Pull
- Contact Finish Thickness - Mating :
- Flash
- Number of Rows :
- 2
- Number of Conductors :
- ONE
- Pitch - Mating :
- 0.050 1.27mm
- Feature :
- Board Guide
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions :
- 10
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Style :
- Board to Board
- Mating Contact Pitch :
- 0.05 inch
- Stack Height (Mating) :
- 6.5mm
- Termination :
- Solder
- Body Length or Diameter :
- 0.376 inch
- Contact Finish - Mating :
- Gold
- RoHS Status :
- ROHS3 Compliant
- Current Rating (Amps) :
- 1A
- Operating Temperature :
- -40°C~105°C
- Mounting Type :
- Surface Mount
- Reference Standard :
- UL
- Datasheets
- M50-4910545
Archer M50 Series 2-Row Header Solder Phosphor Bronze Tube Surface Mount Gold Liquid Crystal Polymer (LCP) 10-Position Board to Board 0.224 5.69mm Height
M50-4910545 Overview
Packaging is Header.Surface Mount is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the Archer M50 Series, it can be found in this category.With its Board Guide feature, it is more powerful in many ways.The device is operating at -40°C~105°C Operating Temperature.
M50-4910545 Features
Archer M50 series
M50-4910545 Applications
There are a lot of Harwin Inc.
M50-4910545 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
