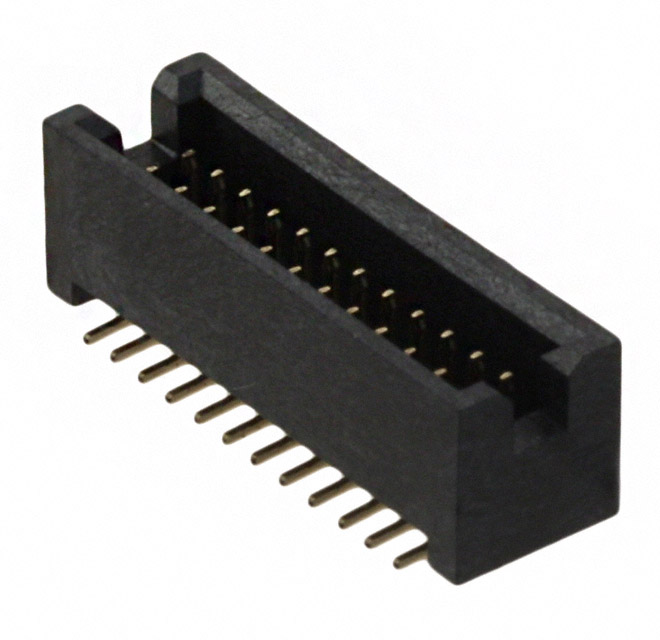

M50-4901245

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

PCB Contact Pattern :

RECTANGULAR

RoHS Status :

ROHS3 Compliant

Additional Feature :

POLARIZED

Insulation Resistance :

1000000000Ohm

Contact Shape :

Square

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-40°C~105°C

REACH SVHC :

No SVHC

Shrouding :

Shrouded - 4 Wall

Contact Type :

Male Pin

Contact Finish - Mating :

Gold

IEC Conformance :

No

Number of Conductors :

ONE

Total Number of Contacts :

24

Option :

GENERAL PURPOSE

MIL Conformance :

No

Reliability :

COMMERCIAL

Number of Positions :

24

Current Rating (Amps) :

1A per Contact

Style :

Board to Board

Mount :

Surface Mount

UL Flammability Code :

94V-0

Fastening Type :

Push-Pull

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Row Spacing - Mating :

0.050 (1.27mm)

Durability :

100 Cycles

Filter Feature :

No

Voltage - Rated :

300V

DIN Conformance :

No

Packaging :

Tube

Mixed Contacts :

No

Number Of PCB Rows :

2

Factory Lead Time :

13 Weeks

Gender :

Male

Termination :

Solder

Contact Material :

COPPER ALLOY

Number of Positions Loaded :

All

Current Rating :

1A

Series :

Archer M50

Insulation Material :

Liquid Crystal Polymer (LCP)

Mounting Type :

Surface Mount

Pbfree Code :

yes

Reference Standard :

UL

Insulation Height :

0.224 5.69mm

Connector Type :

Header

Pitch - Mating :

0.050 1.27mm

Mating Contact Pitch :

0.05 inch

JESD-609 Code :

e4

Number of Rows :

2

Insulation Color :

Black

Published :

2011
