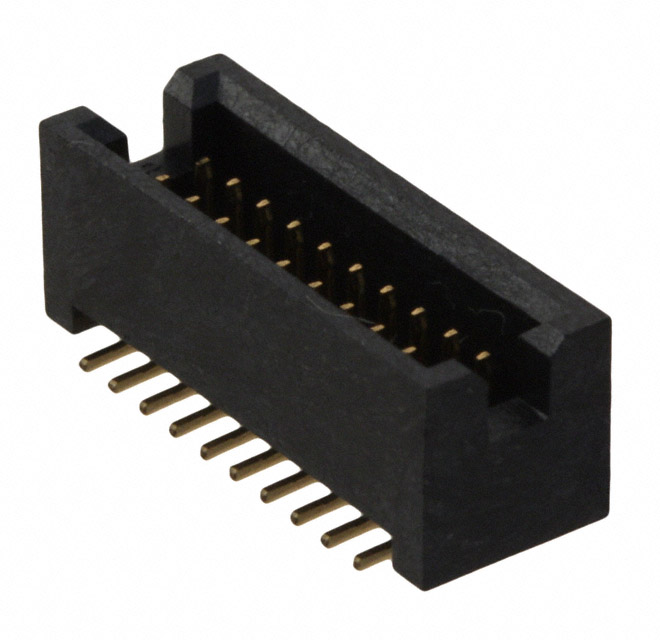

M50-4901045

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

DIN Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Number of Rows :

2

Contact Finish - Mating :

Gold

REACH SVHC :

No SVHC

Number of Positions Loaded :

All

Series :

Archer M50

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

300V

Number of Conductors :

ONE

Number Of PCB Rows :

2

Pbfree Code :

yes

Mating Contact Pitch :

0.05 inch

Packaging :

Tube

Factory Lead Time :

13 Weeks

Style :

Board to Board

Number of Positions :

20

Current Rating (Amps) :

1A per Contact

Option :

GENERAL PURPOSE

Total Number of Contacts :

20

Depth :

6.4mm

Contact Type :

Male Pin

Filter Feature :

No

Operating Temperature :

-40°C~105°C

Published :

2009

Current Rating :

1A

Pitch - Mating :

0.050 1.27mm

Durability :

100 Cycles

UL Flammability Code :

94V-0

RoHS Status :

ROHS3 Compliant

Fastening Type :

Push-Pull

Contact Resistance :

20mOhm

Mount :

Surface Mount

Insulation Height :

0.224 5.69mm

Reference Standard :

UL

Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

Voltage - Rated AC :

150V

MIL Conformance :

No

IEC Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Gender :

Male

Insulation Resistance :

1GOhm

JESD-609 Code :

e4

Housing Material :

Polymer

Row Spacing - Mating :

0.050 (1.27mm)

Insulation Material :

Liquid Crystal Polymer (LCP)

Length :

15.9mm

Additional Feature :

POLARIZED

Max Current Rating :

1A

Contact Shape :

Square

Mixed Contacts :

No

Connector Type :

Header

Housing Color :

Black

Contact Material :

COPPER ALLOY

Radiation Hardening :

No

Mounting Type :

Surface Mount

Orientation :

Straight

Termination :

Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Pitch :

1.27mm

Reliability :

COMMERCIAL
