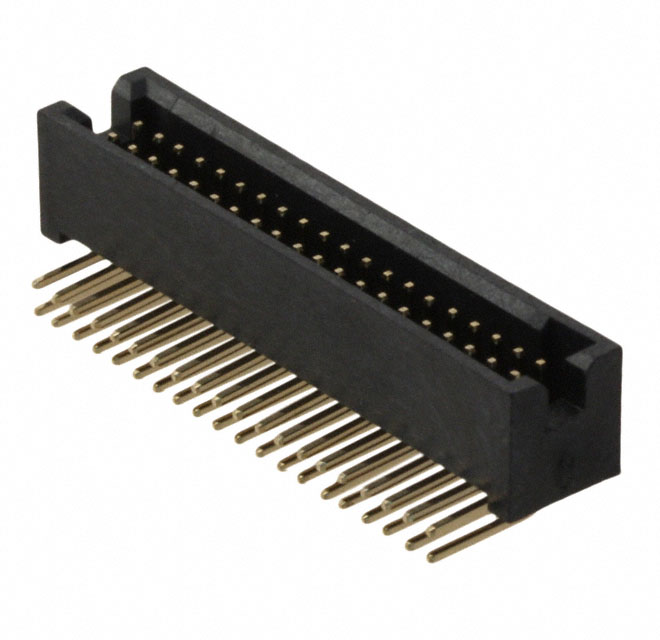

M50-4802045

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

MIL Conformance :

No

Pitch - Mating :

0.050 1.27mm

Insulation Height :

0.222 5.65mm

Number of Positions Loaded :

All

Reference Standard :

UL

Insulation Color :

Black

Insulation Resistance :

1000000000Ohm

Operating Temperature :

-40°C~105°C

Row Spacing - Mating :

0.050 (1.27mm)

Length - Termination :

0.083 inch

Insulation Material :

Liquid Crystal Polymer (LCP)

Additional Feature :

RoHS Compliant

Gender :

Male

Shrouding :

Shrouded - 4 Wall

Packaging :

Tube

Connector Type :

Header

UL Flammability Code :

94V-0

Termination :

Solder

DIN Conformance :

No

Number Of PCB Rows :

2

Published :

2013

RoHS Status :

ROHS3 Compliant

Contact Finish - Mating :

Gold

Number of Conductors :

ONE

Durability :

100 Cycles

Mounting Type :

Through Hole, Right Angle

Reliability :

COMMERCIAL

Option :

GENERAL PURPOSE

Fastening Type :

Push-Pull

Contact Type :

Male Pin

Mating Contact Pitch :

0.05 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Series :

Archer M50

Factory Lead Time :

10 Weeks

Filter Feature :

No

Contact Shape :

Square

Contact Material :

COPPER ALLOY

Contact Length - Post :

0.083 2.11mm

Number of Rows :

2

IEC Conformance :

No

JESD-609 Code :

e4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

40

Current Rating :

1A

Mount :

Through Hole

Voltage - Rated :

300V

Mixed Contacts :

No

Style :

Board to Board

Pbfree Code :

yes

Current Rating (Amps) :

1A per Contact

Material Flammability Rating :

UL94 V-0
