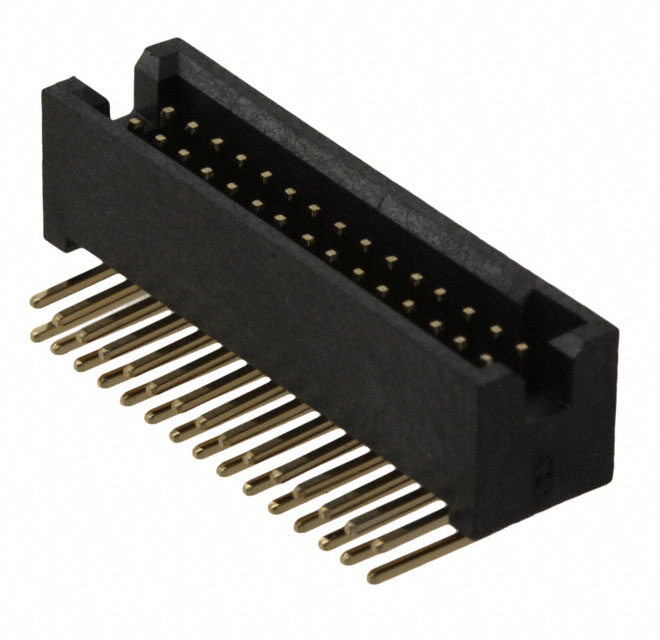

M50-4801545

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Length - Post :

0.083 2.11mm

Packaging :

Tube

Published :

2011

Insulation Resistance :

1000000000Ohm

Option :

GENERAL PURPOSE

Contact Material :

COPPER ALLOY

Insulation Height :

0.222 5.65mm

IEC Conformance :

No

JESD-609 Code :

e4

UL Flammability Code :

94V-0

Number Of PCB Rows :

2

Shrouding :

Shrouded - 4 Wall

Length - Termination :

0.083 inch

Number of Rows :

2

Current Rating (Amps) :

1A per Contact

Number of Positions :

30

RoHS Status :

ROHS3 Compliant

Style :

Board to Board

Number of Positions Loaded :

All

Reliability :

COMMERCIAL

Body Length or Diameter :

0.876 inch

Operating Temperature :

-40°C~105°C

Mounting Type :

Through Hole, Right Angle

Contact Shape :

Square

Fastening Type :

Push-Pull

Reference Standard :

UL

Mixed Contacts :

No

Insulation Material :

Liquid Crystal Polymer (LCP)

Additional Feature :

RoHS Compliant

Contact Finish - Mating :

Gold

Series :

Archer M50

Row Spacing - Mating :

0.050 (1.27mm)

Factory Lead Time :

13 Weeks

MIL Conformance :

No

Number of Conductors :

ONE

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Male Pin

Pitch - Mating :

0.050 1.27mm

Pbfree Code :

yes

Mating Contact Pitch :

0.05 inch

Durability :

100 Cycles

Mounting Option 1 :

LOCKING

Filter Feature :

No

Insulation Color :

Black

Termination :

Solder

DIN Conformance :

No

Connector Type :

Header

Mating Information :

MULTIPLE MATING PARTS AVAILABLE
