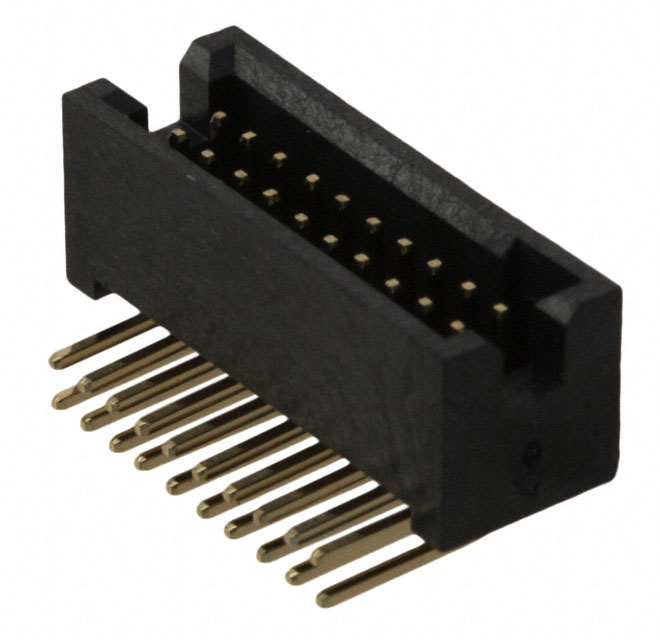

M50-4801045

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Reference Standard :

UL

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Option :

GENERAL PURPOSE

Mounting Type :

Through Hole, Right Angle

Insulation Height :

0.222 5.65mm

Insulation Resistance :

1000000000Ohm

Operating Temperature :

-40°C~105°C

Shrouding :

Shrouded - 4 Wall

Packaging :

Tube

Contact Shape :

Square

MIL Conformance :

No

Filter Feature :

No

Insulation Material :

Liquid Crystal Polymer (LCP)

Contact Material :

COPPER ALLOY

Style :

Board to Board

Contact Finish - Mating :

Gold

Mating Contact Pitch :

0.05 inch

Number of Positions :

20

Current Rating (Amps) :

1A per Contact

Factory Lead Time :

13 Weeks

Mixed Contacts :

No

Pitch - Mating :

0.050 1.27mm

Contact Length - Post :

0.083 2.11mm

Durability :

100 Cycles

JESD-609 Code :

e4

Contact Type :

Male Pin

Number Of PCB Rows :

2

Number of Conductors :

ONE

Current Rating :

1A

Termination :

Solder

Mount :

Through Hole

RoHS Status :

ROHS3 Compliant

Connector Type :

Header

Fastening Type :

Push-Pull

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2011

Insulation Color :

Black

UL Flammability Code :

94V-0

Gender :

Male

Series :

Archer M50

Pbfree Code :

yes

DIN Conformance :

No

IEC Conformance :

No

Length - Termination :

0.083 inch

Number of Positions Loaded :

All

Row Spacing - Mating :

0.050 (1.27mm)

Number of Rows :

2

Additional Feature :

RoHS Compliant

Voltage - Rated :

300V

Reliability :

COMMERCIAL

Material Flammability Rating :

UL94 V-0
