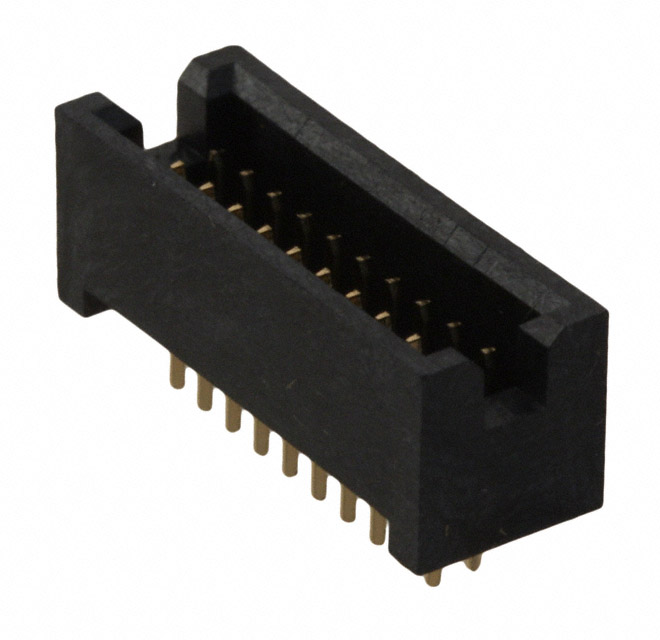

M50-4701045

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Finish - Mating :

Gold

Insulation Height :

0.224 5.69mm

Contact Material :

COPPER ALLOY

Termination :

Solder

Insulation Resistance :

1000000000Ohm

Housing Color :

Black

Pitch - Mating :

0.050 1.27mm

Shrouding :

Shrouded - 4 Wall

Housing Material :

Nylon

Gender :

Male

Current Rating :

1A

Reliability :

COMMERCIAL

RoHS Status :

ROHS3 Compliant

Style :

Board to Board

REACH SVHC :

No SVHC

Number of Conductors :

ONE

Radiation Hardening :

No

Number of Rows :

2

Max Voltage Rating (AC) :

500V

Length :

15.9mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mixed Contacts :

No

Current Rating (Amps) :

1A per Contact

Mount :

Through Hole

Contact Type :

Male Pin

Packaging :

Tube

Contact Length - Post :

0.091 2.30mm

Stack Height (Mating) :

6mm

Material Flammability Rating :

UL94 V-0

Depth :

5.65mm

Series :

Archer M50

Mounting Type :

Through Hole

Pbfree Code :

yes

Fastening Type :

Push-Pull

Voltage - Rated :

500V

Reference Standard :

UL

Contact Shape :

Square

Durability :

100 Cycles

Filter Feature :

No

Orientation :

Straight

Max Current Rating :

1A

DIN Conformance :

No

MIL Conformance :

No

Row Spacing - Mating :

0.050 (1.27mm)

Number of Positions Loaded :

All

UL Flammability Code :

94V-0

Operating Temperature :

-40°C~105°C

Factory Lead Time :

13 Weeks

Number of Positions :

20

JESD-609 Code :

e4

Additional Feature :

RoHS Compliant

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Option :

GENERAL PURPOSE

Insulation Material :

Liquid Crystal Polymer (LCP)

Mating Contact Pitch :

0.05 inch

IEC Conformance :

No

Contact Resistance :

20mOhm

Published :

2011

Connector Type :

Header
