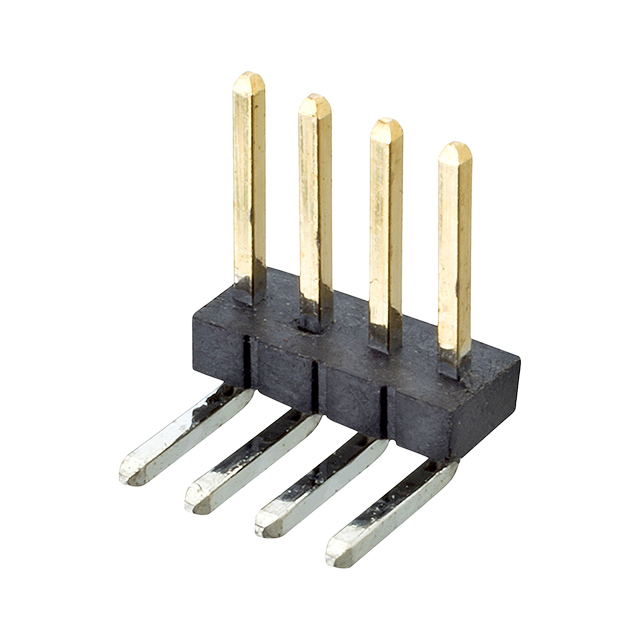

M50-3930442
Or copy the link below:
- Mfr.Part #
- M50-3930442
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 1.27MM
- Stock
- 371
- In Stock ：
- 371
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Contact Material :
- Brass
- Mixed Contacts :
- No
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- Contact Finish - Post :
- Tin
- Insulation Color :
- Black
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Contact Shape :
- Square
- Insulation Height :
- 0.039 1.00mm
- Number of Positions :
- 4
- Factory Lead Time :
- 13 Weeks
- Current Rating :
- 1A
- Current Rating (Amps) :
- 1A per Contact
- Style :
- Board to Board or Cable
- Shrouding :
- Unshrouded
- IEC Conformance :
- No
- Number of Rows :
- 1
- Connector Type :
- Header
- RoHS Status :
- ROHS3 Compliant
- Height :
- 2.3mm
- Insulation Material :
- Polyamide (PA9T), Nylon 9T
- Series :
- Archer M50
- Filter Feature :
- No
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Post :
- 0.094 2.40mm
- Contact Length - Mating :
- 0.157 4.00mm
- MIL Conformance :
- No
- Contact Finish - Mating :
- Gold
- Fastening Type :
- Push-Pull
- Packaging :
- Bulk
- Mounting Type :
- Through Hole, Right Angle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~105°C
- Termination :
- Solder
- Pitch - Mating :
- 0.050 1.27mm
- Datasheets
- M50-3930442
M50-3930442 Documents
Archer M50 Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA9T), Nylon 9T 4-Position Board to Board or Cable 0.039 1.00mm Height
M50-3930442 Overview
The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Archer M50 Series.It operates at an operating temperature of -40°C~105°C.
M50-3930442 Features
Archer M50 series
M50-3930442 Applications
There are a lot of Harwin Inc.
M50-3930442 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
