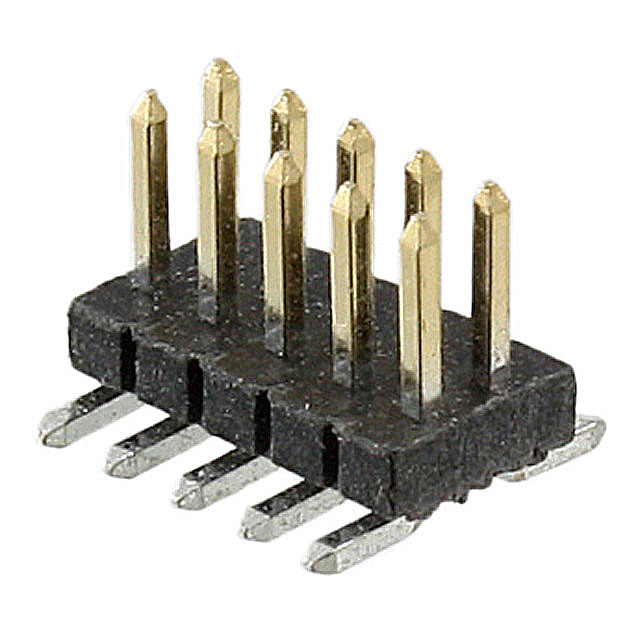

M50-3610542R
Or copy the link below:
- Mfr.Part #
- M50-3610542R
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 10POS 1.27MM
- Stock
- 1,160
- In Stock ：
- 1,160
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Number of Positions :
- 10
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Contact Length - Mating :
- 0.118 3.00mm
- Contact Material :
- Brass
- Contact Finish - Post :
- Tin
- Fastening Type :
- Push-Pull
- Operating Temperature :
- -55°C~105°C
- Pitch - Mating :
- 0.050 1.27mm
- Insulation Material :
- Thermoplastic
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Packaging :
- Tape and Reel (TR)
- Shrouding :
- Unshrouded
- Factory Lead Time :
- 13 Weeks
- Style :
- Board to Board or Cable
- Published :
- 2016
- Mounting Type :
- Surface Mount
- RoHS Status :
- ROHS3 Compliant
- Feature :
- Board Guide, Pick and Place
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Contact Finish - Mating :
- Gold
- Mount :
- Surface Mount
- Series :
- Archer M50
- Material Flammability Rating :
- UL94 V-0
- Contact Shape :
- Square
- Current Rating (Amps) :
- 1A
- Contact Finish Thickness - Mating :
- 1.00μin 0.025μm
- Voltage - Rated :
- 250V
- Insulation Height :
- 0.039 1.00mm
- Termination :
- Solder
- Connector Type :
- Header
- Gender :
- Male
- Insulation Color :
- Black
- Number of Rows :
- 2
- Datasheets
- M50-3610542R
Archer M50 Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount Gold Thermoplastic 10-Position Board to Board or Cable 0.039 1.00mm Height
M50-3610542R Overview
Packaging is in the form of Header.This device has a Surface Mount mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the Archer M50 Series.Several benefits come from the Board Guide, Pick and Place feature.There is a mounting hole at Surface Mount.Devices operate at -55°C~105°C operating temperatures.
M50-3610542R Features
Archer M50 series
M50-3610542R Applications
There are a lot of Harwin Inc.
M50-3610542R Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
