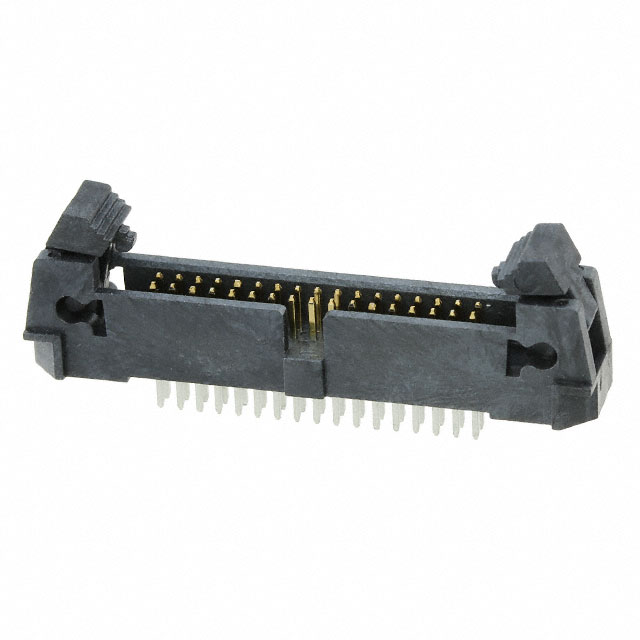

M50-3551742

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Max Current Rating :

1.75A

Insulation Resistance :

5GOhm

Housing Material :

Polymer

Pbfree Code :

yes

Shrouding :

Shrouded - 4 Wall

Length :

14.48mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fastening Type :

Latch Lock/Eject Hooks

Termination :

Solder

Contact Gender :

Male

Mating Post Length :

3.05mm

Connector Type :

Header

Number Of PCB Rows :

2

Orientation :

Straight

Packaging :

Bulk

REACH SVHC :

No SVHC

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Contact Type :

Male Pin

Contact Length - Post :

0.107 2.71mm

Polarization Key :

POLARIZED HOUSING

Current Rating :

1.75A

Material Flammability Rating :

UL94 V-0

Published :

2012

Contact Length - Mating :

0.120 3.05mm

HTS Code :

8536.69.40.51

Contact Finish - Mating :

Gold

Pitch - Mating :

0.050 1.27mm

Stack Height (Mating) :

11.6mm

Number of Positions Loaded :

All

Contact Finish Thickness - Mating :

Flash

Style :

Board to Board or Cable

Number of Conductors :

ONE

Overall Contact Length :

0.351 8.92mm

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

PCB Contact Pattern :

RECTANGULAR

Number of Rows :

2

Reliability :

COMMERCIAL

Operating Temperature :

-55°C~125°C

Mount :

Through Hole

Height :

11.3mm

Insulation :

Insulated

Insulation Height :

0.325 8.25mm

Contact Finish Thickness - Post :

100.0μin 2.54μm

Mating Contact Pitch :

0.05 inch

Mounting Type :

Through Hole

JESD-609 Code :

e3

Insulation Color :

Black

Contact Finish - Post :

Tin

Contact Material :

Brass

Feature :

Keying Slot

Row Spacing - Mating :

0.050 (1.27mm)

Dielectric Withstanding Voltage :

1400VAC V

Lead Length :

2.72mm

Reference Standard :

UL

Contact Resistance :

20mOhm

Depth :

6.67mm

Contact Shape :

Square

Factory Lead Time :

12 Weeks

Number of Positions :

34

Current Rating (Amps) :

1.75A per Contact

Series :

Archer M50
