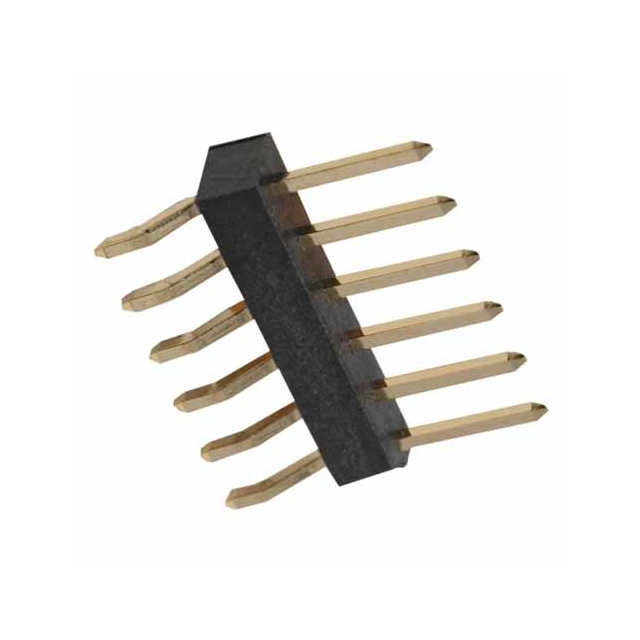

M20-8900605R

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Packaging :

Tape and Reel (TR)

Number Of PCB Rows :

1

Pitch - Mating :

0.100 2.54mm

Total Number of Contacts :

6

Body Depth :

0.283 inch

Reliability :

COMMERCIAL

Connector Type :

Header, Cuttable

Mounting Type :

Surface Mount, Right Angle

Reference Standard :

UL

Contact Length - Mating :

0.236 6.00mm

Insulation Resistance :

5000000000Ohm

Contact Shape :

Square

Number of Positions :

6

Insulation Material :

Polyamide (PA6T), Nylon 6T

Mounting Option 1 :

LOCKING

Dielectric Withstanding Voltage :

500VAC V

Insulation Height :

0.136 3.46mm

Contact Finish Thickness - Mating :

Flash

Series :

M20

Current Rating (Amps) :

3A per Contact

Number of Positions Loaded :

All

Body Length or Diameter :

0.5 inch

Contact Material :

Brass

Number of Conductors :

ONE

RoHS Status :

ROHS3 Compliant

Contact Finish - Mating :

Gold

Shrouding :

Unshrouded

Fastening Type :

Push-Pull

Contact Resistance :

20mOhm

Number of Rows :

1

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-40°C~105°C

Factory Lead Time :

14 Weeks

Terminal Pitch :

2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Male Pin

Insulation Color :

Black

Termination :

Solder

Style :

Board to Board or Cable

PCB Contact Pattern :

RECTANGULAR

ECCN Code :

EAR99
