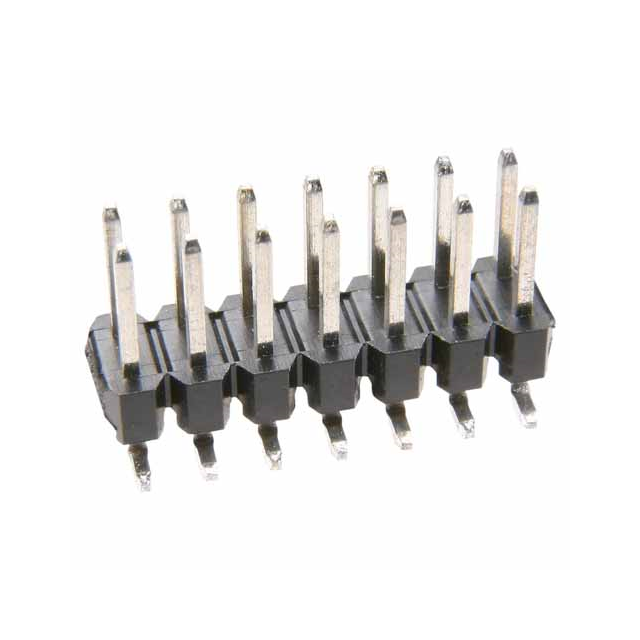

M20-8760846R

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Housing Material :

Nylon

Contact Style :

SQ PIN-SKT

Contact Finish - Mating :

Tin

Factory Lead Time :

12 Weeks

ECCN Code :

EAR99

Orientation :

Straight

PCB Contact Pattern :

RECTANGULAR

DIN Conformance :

No

Rated Current (Signal) :

3A

Gender :

Male

Reference Standard :

UL

Mounting Type :

BOARD

Min Operating Temperature :

-40°C

Total Number of Contacts :

16

Length :

20.32mm

Body Breadth :

0.197 inch

Packaging :

Tape and Reel (TR)

Filter Feature :

No

Pitch :

2.54mm

Max Current Rating :

3A

Housing Color :

Black

Max Operating Temperature :

105°C

Reliability :

COMMERCIAL

Mixed Contacts :

No

Dielectric Withstanding Voltage :

1000VAC V

Mating Contact Row Spacing :

0.1 inch

Insulation Resistance :

500000000Ohm

Depth :

6.3mm

Body/Shell Style :

Receptacle

Number Of PCB Rows :

2

Termination :

Solder

Contact Material :

Bronze

RoHS Status :

ROHS3 Compliant

MIL Conformance :

No

Number of Conductors :

ONE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Mounting Option 1 :

LOCKING

Number of Rows :

2

Contact Pattern :

RECTANGULAR

Contact Resistance :

30mOhm

IEC Conformance :

No

HTS Code :

8536.69.40.40

Durability :

50 Cycles

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Contact Plating :

Tin

Additional Feature :

RoHS Compliant

Connector Type :

BOARD CONNECTOR

JESD-609 Code :

e3
