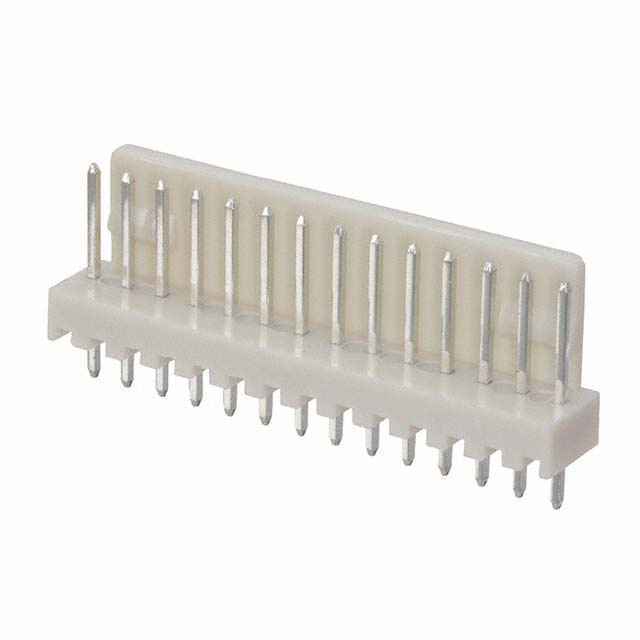

LHA-14-TS
Or copy the link below:
- Mfr.Part #
- LHA-14-TS
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 14POS 2.54MM
- Stock
- 968
- In Stock ：
- 968
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Polyamide (PA), Nylon
- Polarization Key :
- POLARIZED HOUSING
- RoHS Status :
- ROHS3 Compliant
- Number of Rows :
- 1
- Material Flammability Rating :
- UL94 V-2
- Reliability :
- COMMERCIAL
- Factory Lead Time :
- 9 Weeks
- Contact Shape :
- Square
- Contact Length - Post :
- 0.134 3.40mm
- Overall Contact Length :
- 0.559 14.20mm
- Pitch - Mating :
- 0.100 2.54mm
- Mounting Option 1 :
- LOCKING
- Body Breadth :
- 0.228 inch
- Insulation Color :
- Ivory
- Series :
- LHA
- HTS Code :
- 8536.69.40.40
- PCB Contact Pattern :
- RECTANGULAR
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 250VAC
- Contact Material :
- Brass
- Shrouding :
- Shrouded - 1 Wall
- Current Rating (Amps) :
- 3A
- Contact Resistance :
- 20mOhm
- Number of Positions :
- 14
- Number of Conductors :
- ONE
- Packaging :
- Bulk
- Number Of PCB Rows :
- 1
- Style :
- Board to Cable/Wire
- Terminal Pitch :
- 2.54mm
- Fastening Type :
- Friction Lock
- ECCN Code :
- EAR99
- Contact Finish - Mating :
- Tin
- Operating Temperature :
- -25°C~85°C
- Mounting Type :
- Through Hole
- Connector Type :
- Header
- Contact Type :
- Male Pin
- JESD-609 Code :
- e3
- Reference Standard :
- UL, CSA
- Termination :
- Solder
- Body Depth :
- 0.453 inch
- Additional Feature :
- RoHS Compliant
- Insulation Height :
- 0.134 3.40mm
- Number of Positions Loaded :
- All
- Contact Length - Mating :
- 0.291 7.40mm
- Datasheets
- LHA-14-TS
LHA-14-TS Documents
LHA Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA), Nylon 14-Position Board to Cable/Wire 0.134 3.40mm Height
LHA-14-TS Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the LHA Series.To name a few, there is also ROHS COMPLIANT.As a result, the device runs at -25°C~85°C Operating Temperature.
LHA-14-TS Features
LHA series
LHA-14-TS Applications
There are a lot of Adam Tech
LHA-14-TS Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
