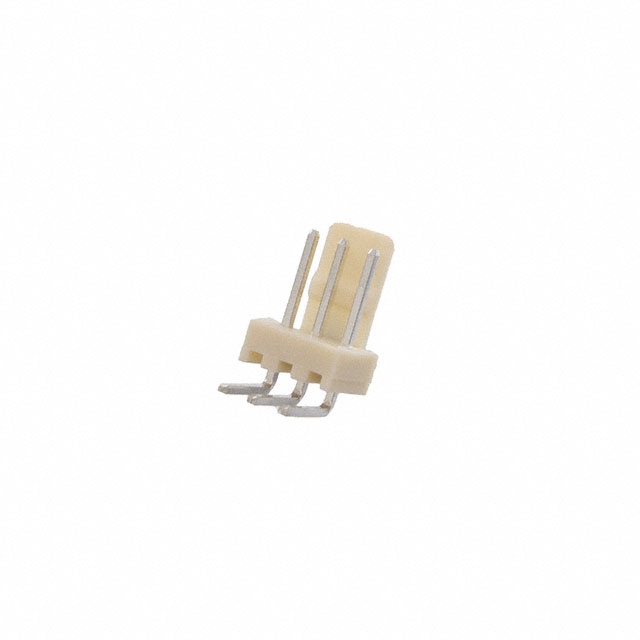

LHA-03-TRA
Or copy the link below:
- Mfr.Part #
- LHA-03-TRA
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 3POS 2.54MM
- Stock
- 2,245
- In Stock ：
- 2,245
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Body Breadth :
- 0.228 inch
- Factory Lead Time :
- 9 Weeks
- Body Length or Diameter :
- 0.4 inch
- PCB Contact Pattern :
- RECTANGULAR
- Pitch - Mating :
- 0.100 2.54mm
- Number of Positions :
- 3
- Lead Free :
- Lead Free
- Series :
- LHA
- Number of Rows :
- 1
- Operating Temperature :
- -40°C~105°C
- Fastening Type :
- Friction Lock
- RoHS Status :
- ROHS3 Compliant
- Terminal Pitch :
- 2.54mm
- Mounting Option 1 :
- LOCKING
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Polarization Key :
- POLARIZED HOUSING
- Shrouding :
- Shrouded - 1 Wall
- Contact Finish - Mating :
- Tin
- Termination :
- Solder
- Number Of PCB Rows :
- 1
- Contact Material :
- Brass
- Contact Shape :
- Square
- Reference Standard :
- UL
- Insulation Height :
- 0.228 5.80mm
- Packaging :
- Bulk
- Number of Positions Loaded :
- All
- Body Depth :
- 0.524 inch
- Contact Type :
- Male Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Length - Post :
- 0.134 3.40mm
- Dielectric Withstanding Voltage :
- 500VAC V
- Current Rating (Amps) :
- 3A
- Contact Length - Mating :
- 0.276 7.00mm
- Style :
- Board to Board
- Insulation Color :
- White
- Material Flammability Rating :
- UL94 V-2
- Connector Type :
- Header
- Mounting Type :
- Through Hole, Right Angle
- Voltage - Rated :
- 250VAC
- Reliability :
- COMMERCIAL
- Number of Conductors :
- ONE
- Datasheets
- LHA-03-TRA
LHA-03-TRA Documents
LHA Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 3-Position Board to Board 0.228 5.80mm Height
LHA-03-TRA Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Bulk case.It is part of the LHA Series of products.There is no operating temperature for the device.
LHA-03-TRA Features
LHA series
LHA-03-TRA Applications
There are a lot of Adam Tech
LHA-03-TRA Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
