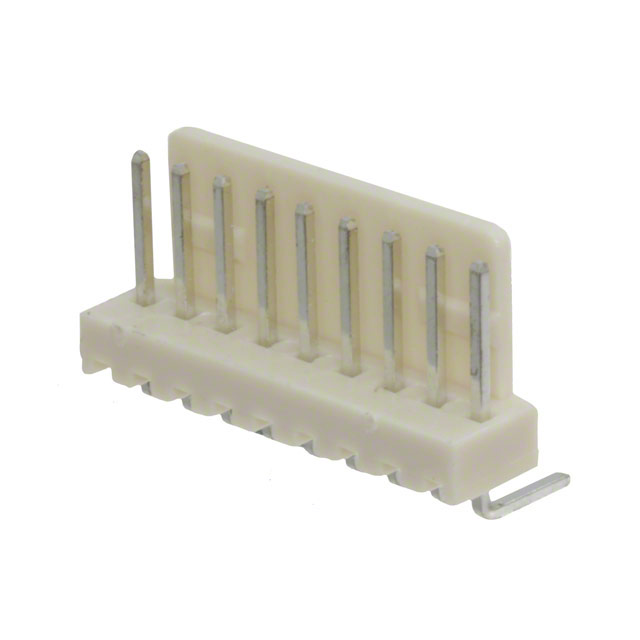

LHA-09-TRB

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Body Breadth :

0.228 inch

Number of Positions Loaded :

All

Termination :

Solder

Number of Rows :

1

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e3

Insulation Color :

White

Insulation Material :

Polyamide (PA66), Nylon 6/6

Packaging :

Bulk

PCB Contact Pattern :

RECTANGULAR

Material Flammability Rating :

UL94 V-2

Contact Shape :

Square

Voltage - Rated :

250VAC

Fastening Type :

Friction Lock

Insulation Height :

0.228 5.80mm

Number of Positions :

9

Connector Type :

Header

Mounting Option 1 :

LOCKING

Number of Conductors :

ONE

Contact Length - Mating :

0.293 7.45mm

Additional Feature :

RoHS Compliant

Pitch - Mating :

0.100 2.54mm

Body Depth :

0.524 inch

Terminal Pitch :

2.54mm

Mounting Type :

Through Hole, Right Angle

Number Of PCB Rows :

1

Shrouding :

Shrouded - 1 Wall

Style :

Board to Cable/Wire

Series :

LHA

Current Rating (Amps) :

3A

RoHS Status :

ROHS3 Compliant

Contact Length - Post :

0.134 3.40mm

Contact Type :

Male Pin

Contact Material :

Brass

Factory Lead Time :

9 Weeks

Polarization Key :

POLARIZED HOUSING

Operating Temperature :

-25°C~85°C

Reference Standard :

UL

Dielectric Withstanding Voltage :

500VAC V

Contact Finish - Mating :

Tin
