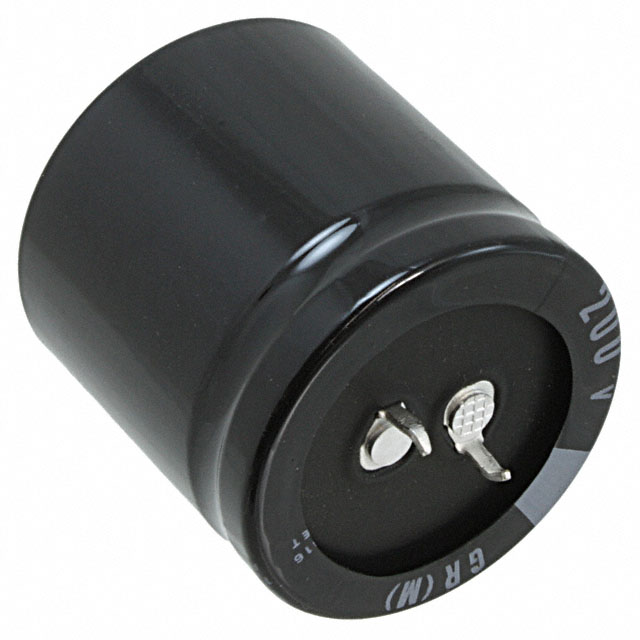

LGR2G271MELC35

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Lead Spacing :

0.394 10.00mm

Package / Case :

Radial, Can - Snap-In

Termination :

Snap in

Lifetime @ Temp :

10000 Hrs @ 105°C

Size / Dimension :

1.378Dia 35.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Polarity :

Polar

Mount :

Through Hole

Ripple Current @ High Frequency :

1.573A @ 50kHz

Height Seated (Max) :

1.457 37.00mm

Factory Lead Time :

19 Weeks

Radiation Hardening :

No

Ripple Current @ Low Frequency :

1.1A @ 120Hz

Height :

35mm

Mounting Type :

Through Hole

Length :

35mm

Life (Hours) :

10000 hours

Voltage :

400V

Published :

2009

Packaging :

Bulk

Series :

LGR

Voltage - Rated :

400V

Test Frequency :

120Hz

RoHS Status :

ROHS3 Compliant

Tolerance :

±20%

Max Operating Temperature :

105°C

Min Operating Temperature :

-25°C

Leakage Current :

980μA

Capacitance :

270μF

Diameter :

35mm

Operating Temperature :

-25°C~105°C

Voltage - Rated DC :

400V

Polarization :

Polar

Number of Pins :

2

Dissipation Factor :

0.15 %

Lead Diameter :

800 µm

Lead Pitch :

10mm

Applications :

GENERAL PURPOSE

Ripple Current :

1.1A
