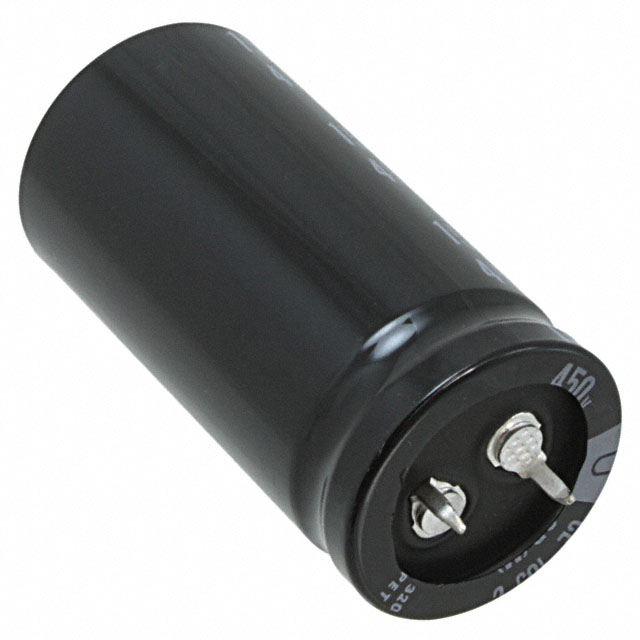

LGR2E561MELA50

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Dielectric Material :

ALUMINUM (WET)

Ripple Current @ Low Frequency :

1.5A @ 120Hz

Height Seated (Max) :

2.047 52.00mm

Terminal Pitch :

10mm

Lifetime @ Temp :

10000 Hrs @ 105°C

Polarization :

Polar

Termination :

Snap in

Factory Lead Time :

19 Weeks

Applications :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Pbfree Code :

yes

Ripple Current :

1.5A

Tolerance :

±20%

Lead Spacing :

0.394 10.00mm

Package / Case :

Radial, Can - Snap-In

Ripple Current @ High Frequency :

2.25A @ 50kHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Rated DC :

250V

Test Frequency :

120Hz

Published :

2015

Life (Hours) :

10000 hours

ECCN Code :

EAR99

Dissipation Factor :

0.15 %

Number of Pins :

2

Capacitance :

560μF

Lead Pitch :

10.0076mm

Series :

LGR

Mount :

Through Hole

Number of Terminations :

2

Leakage Current :

1.12mA

Mounting Type :

Through Hole

Operating Temperature :

-40°C~105°C

Diameter :

25mm

Size / Dimension :

0.984Dia 25.00mm

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Length :

50mm

JESD-609 Code :

e3

Packaging :

Bulk

Terminal Finish :

Matte Tin (Sn)
