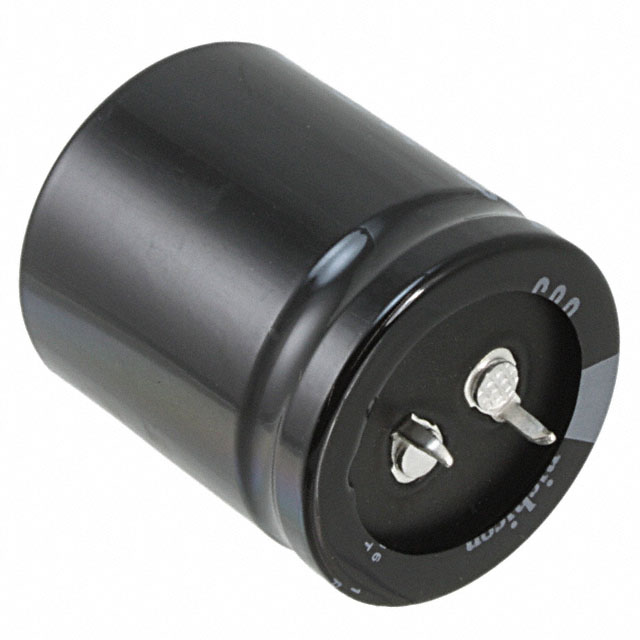

LGR2E471MELB35

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Mount :

Through Hole

Tolerance :

±20%

Life (Hours) :

10000 hours

Ripple Current @ Low Frequency :

1.4A @ 120Hz

Terminal Finish :

Matte Tin (Sn)

Capacitance :

470µF

Height Seated (Max) :

1.457 37.00mm

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Operating Temperature :

-40°C~105°C

Termination :

Snap in

JESD-609 Code :

e3

Lead Pitch :

10.0076mm

RoHS Status :

ROHS3 Compliant

Number of Pins :

2

Size / Dimension :

1.181Dia 30.00mm

Length :

35mm

Lifetime @ Temp :

10000 Hrs @ 105°C

Packaging :

Bulk

Test Frequency :

120Hz

Lead Spacing :

0.394 10.00mm

Applications :

GENERAL PURPOSE

Dielectric Material :

ALUMINUM (WET)

Series :

LGR

Diameter :

30mm

Leakage Current :

1.02mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Ripple Current :

1.4A

Factory Lead Time :

19 Weeks

Published :

2009

Package / Case :

Radial, Can - Snap-In

Terminal Pitch :

10mm

Voltage - Rated DC :

250V

Number of Terminations :

2

Ripple Current @ High Frequency :

2.1A @ 50kHz

Pbfree Code :

yes

Dissipation Factor :

0.15 %

Polarization :

Polar

ECCN Code :

EAR99

Mounting Type :

Through Hole
