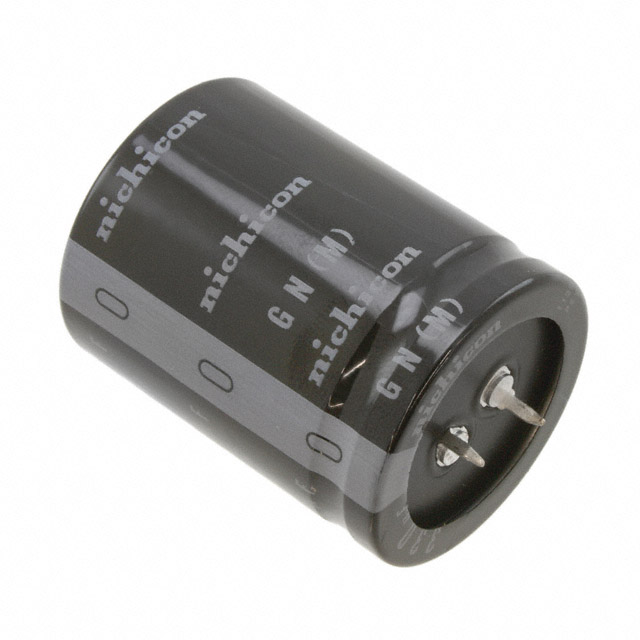

LGN2E152MELC45

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Life (Hours) :

3000 hours

Factory Lead Time :

19 Weeks

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

ECCN Code :

EAR99

Lifetime @ Temp :

3000 Hrs @ 105°C

Mount :

Through Hole

Height :

45mm

Leakage Current :

1.83mA

Feature :

GENERAL PURPOSE

Number of Terminations :

2

Size / Dimension :

1.378Dia 35.00mm

Lead Spacing :

0.394 10.00mm

Termination :

Snap in

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

Terminal Finish :

Matte Tin (Sn)

Package / Case :

Radial, Can - Snap-In

Applications :

GENERAL PURPOSE

Mounting Type :

Through Hole

Lead Pitch :

10mm

Diameter :

35mm

Capacitance :

1500μF

Tolerance :

±20%

HTS Code :

8532.22.00

Operating Temperature :

-40°C~105°C

Pbfree Code :

yes

Tan Delta :

0.15

Series :

LGN

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height Seated (Max) :

1.850 47.00mm

Dielectric Material :

ALUMINUM (WET)

Radiation Hardening :

No

Published :

2009

JESD-609 Code :

e3

Polarization :

Polar

Ripple Current :

2.5A

Ripple Current @ High Frequency :

3.75A @ 50kHz

Ripple Current @ Low Frequency :

2.5A @ 120Hz

Voltage - Rated DC :

250V
