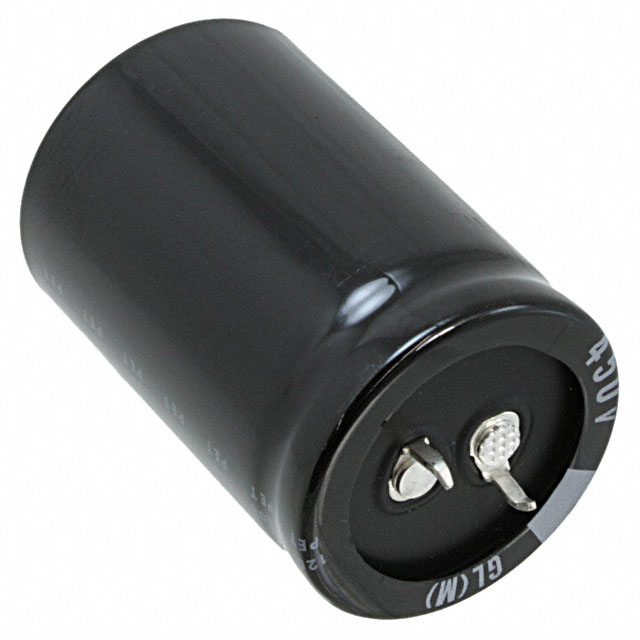

LGL2W471MELB45

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Mount :

Through Hole

Tolerance :

±20%

Leakage Current :

1.37mA

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Ripple Current @ High Frequency :

2.1164A @ 50kHz

Lead Diameter :

800 µm

Dissipation Factor :

0.2 %

Polarization :

Polar

Diameter :

30mm

Lead Pitch :

10mm

Height :

45mm

RoHS Status :

ROHS3 Compliant

Package / Case :

Radial, Can - Snap-In

Packaging :

Bulk

Dielectric Material :

ALUMINUM (WET)

Terminal Finish :

Matte Tin (Sn)

Ripple Current @ Low Frequency :

1.48A @ 120Hz

JESD-609 Code :

e3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Spacing :

0.394 10.00mm

Tan Delta :

0.2

Voltage - Rated DC :

450V

Series :

LGL

Factory Lead Time :

17 Weeks

Ripple Current :

1.48A

Capacitance :

470µF

Number of Terminations :

2

Termination :

Snap in

Number of Pins :

2

Voltage :

450V

Lifetime @ Temp :

2000 Hrs @ 105°C

Height Seated (Max) :

1.850 47.00mm

Published :

2009

Pbfree Code :

yes

Size / Dimension :

1.181Dia 30.00mm

Life (Hours) :

2000 hours

Mounting Type :

Through Hole

Applications :

GENERAL PURPOSE

Test Frequency :

120Hz

Operating Temperature :

-25°C~105°C

ECCN Code :

EAR99
