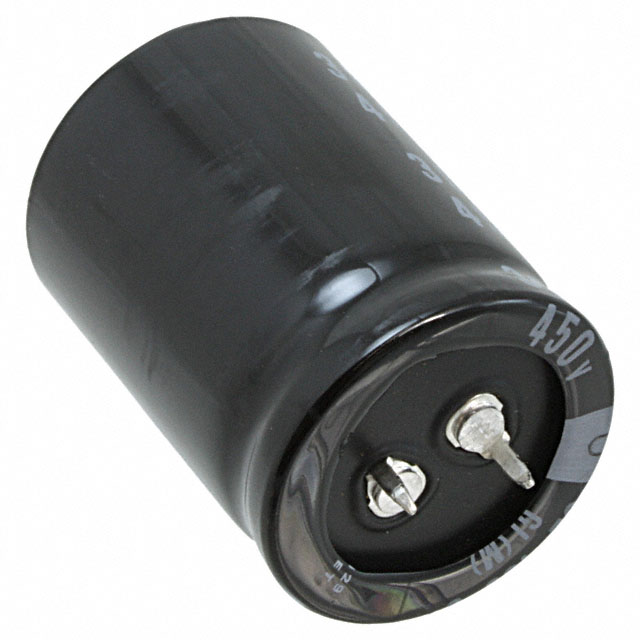

LGL2G561MELB40

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Terminal Finish :

Matte Tin (Sn)

ECCN Code :

EAR99

Ripple Current :

1.66A

Mount :

Through Hole

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Leakage Current :

1.41mA

Voltage :

400V

Polarization :

Polar

Lead Diameter :

800 µm

Size / Dimension :

1.181Dia 30.00mm

Published :

2015

Applications :

GENERAL PURPOSE

Series :

LGL

Diameter :

30mm

Ripple Current @ Low Frequency :

1.66A @ 120Hz

Height Seated (Max) :

1.654 42.00mm

Operating Temperature :

-25°C~105°C

JESD-609 Code :

e3

Tan Delta :

0.15

Number of Terminations :

2

Package / Case :

Radial, Can - Snap-In

RoHS Status :

ROHS3 Compliant

Lead Spacing :

0.394 10.00mm

Capacitance :

560μF

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

Tolerance :

±20%

Voltage - Rated DC :

400V

Lifetime @ Temp :

2000 Hrs @ 105°C

Dielectric Material :

ALUMINUM (WET)

Termination :

Snap in

Mounting Type :

Through Hole

Ripple Current @ High Frequency :

2.3738A @ 50kHz

Life (Hours) :

2000 hours

HTS Code :

8532.22.00

Height :

40mm

Pbfree Code :

yes

Factory Lead Time :

17 Weeks

Lead Pitch :

10mm
