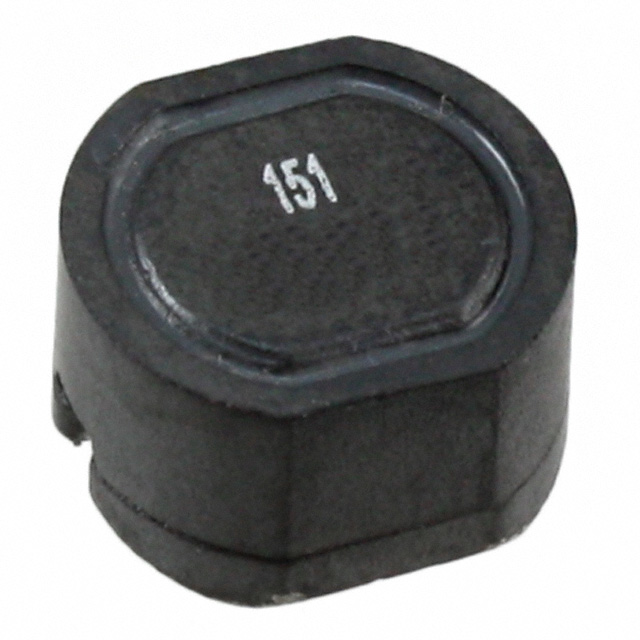

LDS0705-151M-R
Or copy the link below:
- Mfr.Part #
- LDS0705-151M-R
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- FIXED IND 150UH 649MA 554MOHM SM
- Stock
- 49,578
- In Stock ：
- 49,578
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Fixed Inductors
- Mounting Type :
- Surface Mount
- Published :
- 2007
- Inductance Frequency - Test :
- 100kHz
- Shielding :
- Shielded
- Current Rating :
- 649mA
- Max DC Current :
- 649mA
- Inductance :
- 150μH
- Radiation Hardening :
- No
- RoHS Status :
- RoHS Compliant
- Mount :
- Surface Mount
- Type :
- Wirewound
- Height Seated (Max) :
- 0.197 5.00mm
- RMS Current (Irms) :
- 649mA
- Material - Core :
- Ferrite
- REACH SVHC :
- Unknown
- Number of Pins :
- 2
- Tolerance :
- ±20%
- Lead Free :
- Lead Free
- Size / Dimension :
- 0.307Lx0.276W 7.80mmx7.00mm
- Military Standard :
- Not
- Test Frequency :
- 100kHz
- Width :
- 7.2mm
- Current Rating (Amps) :
- 649mA
- Min Operating Temperature :
- -40°C
- Package / Case :
- Nonstandard
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~125°C
- Series :
- LDS0705
- Max Operating Temperature :
- 125°C
- DC Resistance (DCR) :
- 554mOhm
- Factory Lead Time :
- 10 Weeks
- Inductance Tolerance :
- 20%
- Composition :
- Wirewound
- Current - Saturation :
- 645mA
- Length :
- 8mm
- Packaging :
- Tape and Reel (TR)
- Termination :
- SMD/SMT
- Height :
- 5mm
- Depth :
- 7.2mm
- Weight :
- 1.360777g
- Datasheets
- LDS0705-151M-R
LDS0705-151M-R Documents
LDS0705-151M-R datasheet pdf and Fixed Inductors product details from Eaton - Electronics Division stock available at
