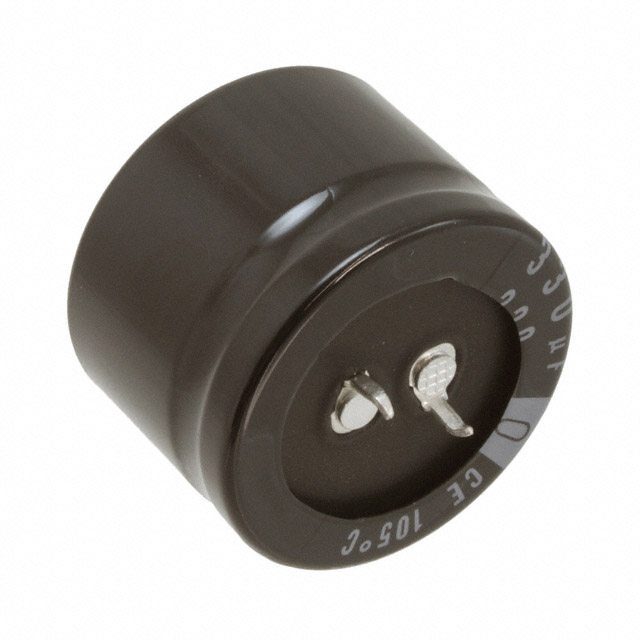

LAQ2P331MELC25

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Voltage - Rated DC :

220V

Packaging :

Bulk

Mounting Type :

Through Hole

ECCN Code :

EAR99

Tolerance :

±20%

HTS Code :

8532.22.00

Lead Pitch :

10.0076mm

Published :

2015

Number of Terminations :

2

Feature :

GENERAL PURPOSE

Ripple Current @ Low Frequency :

1.2A @ 120Hz

Operating Temperature :

-25°C~105°C

Ripple Current @ High Frequency :

1.44A @ 10kHz

Size / Dimension :

1.378Dia 35.00mm

Diameter :

35mm

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Terminal Pitch :

10mm

Factory Lead Time :

17 Weeks

Life (Hours) :

2000 hours

Lifetime @ Temp :

2000 Hrs @ 105°C

Termination :

Snap in

Leakage Current :

800μA

Tan Delta :

0.2

Applications :

GENERAL PURPOSE

JESD-609 Code :

e3

Terminal Finish :

Matte Tin (Sn)

Lead Spacing :

0.394 10.00mm

Polarization :

Polar

Length :

25mm

Height Seated (Max) :

1.063 27.00mm

Package / Case :

Radial, Can - Snap-In

RoHS Status :

ROHS3 Compliant

Capacitance :

330µF

Pbfree Code :

yes

Mount :

Through Hole

Series :

LAQ

Dielectric Material :

ALUMINUM (WET)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Ripple Current :

1.2A
