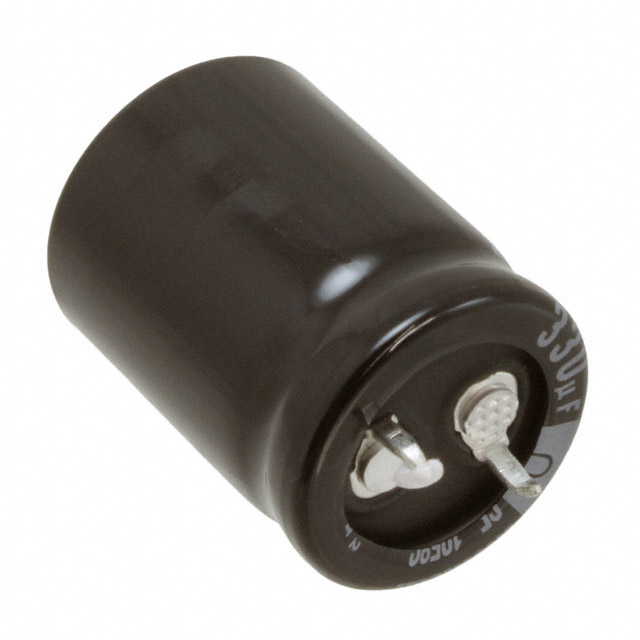

LAQ2D331MELZ30

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Diameter :

22mm

Pbfree Code :

yes

Terminal Finish :

Matte Tin (Sn)

Number of Terminations :

2

Packaging :

Bulk

Package / Case :

Radial, Can - Snap-In

Height Seated (Max) :

1.260 32.00mm

Termination :

Snap in

Lead Pitch :

10.0076mm

Operating Temperature :

-25°C~105°C

Terminal Pitch :

10mm

Mount :

Through Hole

JESD-609 Code :

e3

ECCN Code :

EAR99

Dielectric Material :

ALUMINUM (WET)

RoHS Status :

ROHS3 Compliant

Leakage Current :

770µA

Capacitance :

330µF

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

30mm

Published :

2015

Lead Spacing :

0.394 10.00mm

Factory Lead Time :

17 Weeks

Mounting Type :

Through Hole

Ripple Current @ Low Frequency :

1.2A @ 120Hz

Lifetime @ Temp :

2000 Hrs @ 105°C

HTS Code :

8532.22.00

Ripple Current :

1.2A

Tolerance :

±20%

Voltage - Rated DC :

200V

Size / Dimension :

0.866Dia 22.00mm

Ripple Current @ High Frequency :

1.44A @ 10kHz

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Applications :

GENERAL PURPOSE

Polarization :

Polar

Life (Hours) :

2000 hours

Tan Delta :

0.2

Series :

LAQ
