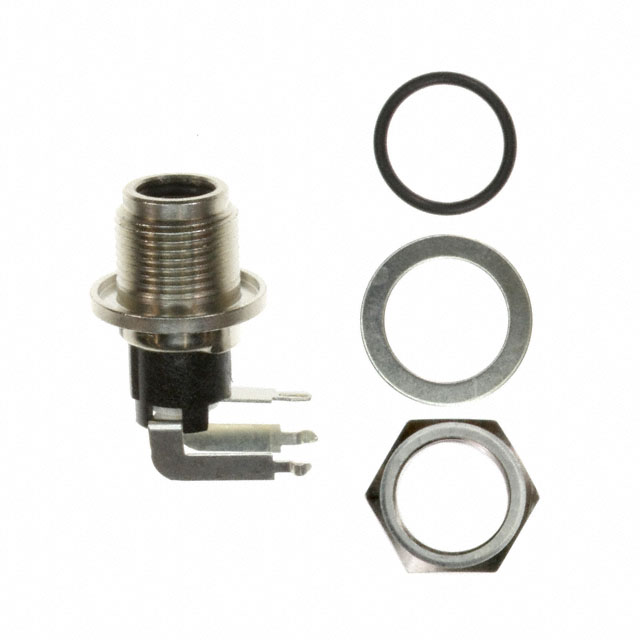

L722RAS
- Mfr.Part #
- L722RAS
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN PWR JACK 2X5.5MM SOLDER
- Stock
- 2,421
- In Stock :
- 2,421
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Power Connectors
- Max Operating Temperature :
- 65°C
- Number of Ports :
- 1
- Published :
- 2009
- Length :
- 26.3mm
- JESD-609 Code :
- e4
- Factory Lead Time :
- 8 Weeks
- Contact Plating :
- Nickel, Silver
- Mount :
- Bulkhead, Panel, Through Hole
- Voltage - Rated DC :
- 30V
- Feature :
- Mounting Hardware, Thread Lock
- Pbfree Code :
- yes
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- MIL Conformance :
- No
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- RIGHT ANGLE
- Current Rating :
- 5A
- Connector Type :
- JACK
- Min Operating Temperature :
- -20°C
- DIN Conformance :
- No
- Body Color :
- Silver, Black
- IEC Conformance :
- No
- Contact Material :
- COPPER ALLOY
- Housing Color :
- Black
- Housing Material :
- Thermoplastic
- Mounting Feature :
- Bulkhead - Front Side Nut
- Shielding :
- Unshielded
- Contact Material - Plating :
- Silver
- REACH SVHC :
- No SVHC
- Actual Diameter :
- 0.079 (2.00mm ID)
- Internal Switch(s) :
- Single Switch, Normally Closed
- Body Material :
- COPPER ALLOY
- Industry Recognized Mating Diameter :
- 2.00mm ID (0.079), 5.50mm OD (0.217)
- Ingress Protection :
- IP68
- Max Current Rating :
- 5A
- Thread Size :
- 7/16-32
- Gender :
- Male
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Max Voltage Rating (DC) :
- 30V
- RoHS Status :
- ROHS3 Compliant
- Number of Pins :
- 3
- Termination :
- Solder
- Option :
- GENERAL PURPOSE
- Includes :
- 4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer
- Pin Diameter :
- 2 mm
- Datasheets
- L722RAS
