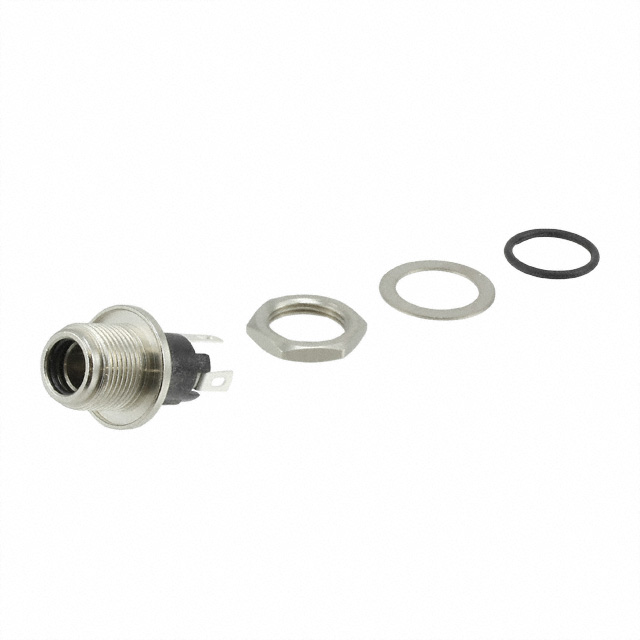

L722AS

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Option :

GENERAL PURPOSE

Body Material :

COPPER ALLOY

Factory Lead Time :

8 Weeks

IEC Conformance :

No

JESD-609 Code :

e4

Internal Switch(s) :

Single Switch, Normally Closed

Housing Material :

Thermoplastic

Body Color :

Silver, Black

Contact Material :

COPPER ALLOY

Mount :

Bulkhead, Front Side Nut, Panel

Pin Diameter :

2 mm

Gender :

Male

Number of Pins :

3

Actual Diameter :

0.079 (2.00mm ID)

Thread Size :

7/16-32

Orientation :

Straight

Feature :

Mounting Hardware, Thread Lock

Mounting Feature :

Bulkhead - Front Side Nut

REACH SVHC :

No SVHC

DIN Conformance :

No

Shielding :

Unshielded

Pbfree Code :

yes

Voltage - Rated DC :

30V

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Mounting Type :

Panel Mount

Connector Type :

JACK

MIL Conformance :

No

Published :

2009

Includes :

4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer

Ingress Protection :

IP68

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Color :

Black

Termination :

Solder Eyelet(s)

RoHS Status :

ROHS3 Compliant

Length :

26.3mm

Contact Plating :

Silver

Industry Recognized Mating Diameter :

2.00mm ID (0.079), 5.50mm OD (0.217)

Packaging :

Bulk

Current Rating :

5A
