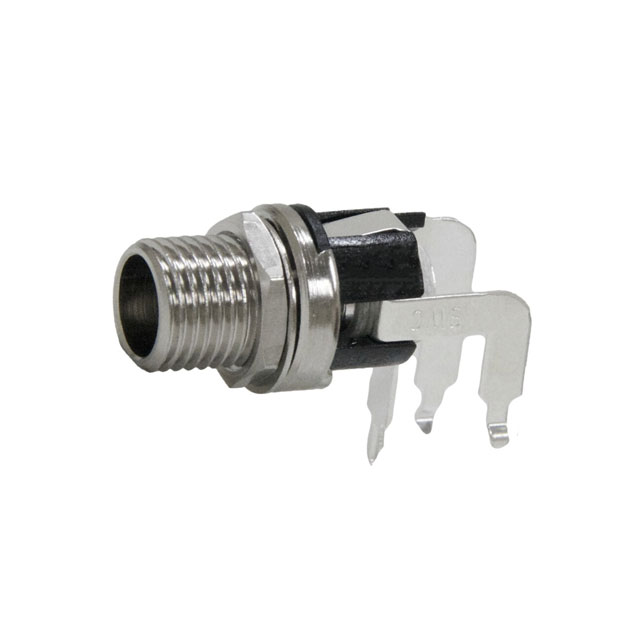

L722RALP

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Contact Material :

COPPER ALLOY

Mating Length/Depth :

-

Body Color :

Silver, Black

Product Status :

Active

Voltage - Rated :

-

Shielding :

Unshielded

Product :

Jacks

Mounting Feature :

Bulkhead - Front Side Nut

Insulation Color :

-

Ingress Protection :

-

Voltage Rating :

24 VDC

Gender :

JACK

IP Rating :

-

Housing Material :

Thermoplastic (TP)

Current Rating :

5 A

Internal Switch(s) :

Single Switch, Normally Closed

Contact Material - Plating :

-

Package :

Box

Operating Temperature :

-

Mounting Type :

Panel Mount, Through Hole

Termination Style :

Solder Lug

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Outside Contact Diameter :

5.5 mm

Maximum Operating Temperature :

+ 85 C

Itar Registered :

Unavailable

Mounting Style :

Panel

Series :

LP

RoHS :

Details

Contact Gender :

Pin (Male)

Packaging :

Bulk

Insulation Resistance :

10000 MOhms

Material Flammability Rating :

-

Pin Diameter :

2mm

ECCN :

EAR99

Minimum Operating Temperature :

- 55 C

Contact Plating :

Nickel

Actual Diameter :

-

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Features :

Mounting Hardware, Thread Lock

Industry Recognized Mating Diameter :

2.00mm ID (0.079), 5.50mm OD (0.217)

Connector Type :

JACK

Current Rating (Amps) :

5 A

Body Material :

COPPER ALLOY

Thread Size :

5/16-32

Mounting Angle :

RIGHT ANGLE

Inside Contact Diameter :

2 mm

Termination :

Solder
