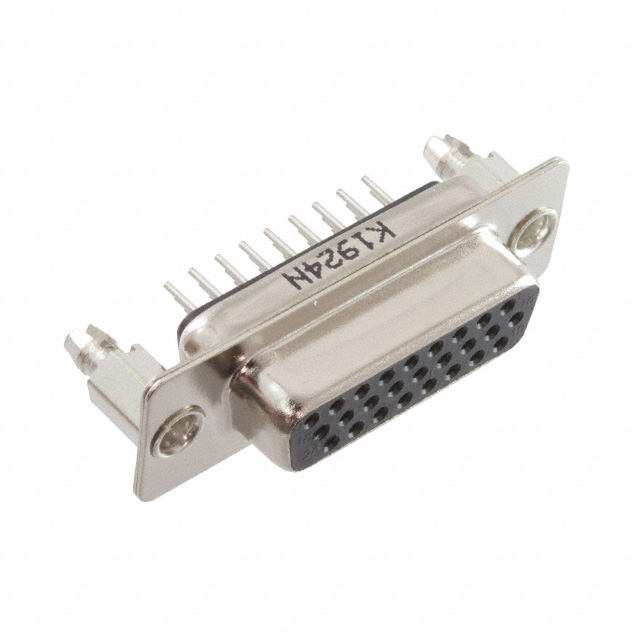

K86X-AD-26S-BR

Manufacturer :

Kycon

Product Category :

D-Sub Connector Assemblies

Reliability :

COMMERCIAL

Material Flammability Rating :

UL94 V-0

Connector Type :

Receptacle, Female Sockets

Radiation Hardening :

No

Number Of PCB Rows :

3

Contact Material :

Brass

Insulation :

Insulated

Color :

Black

Pitch :

2.77mm

Shell Material, Finish :

Steel, Nickel Plated

Filter Feature :

No

Plating :

Tin

Shell Size, Connector Layout :

2 DA A High Density

Number of Rows :

3

Contact Type :

Signal

Current Rating :

2A

Contact Finish :

Gold

Current Rating (Amps) :

1.5A

Mounting Type :

Through Hole

Mount :

Through Hole

Total Number of Contacts :

26

Option :

GENERAL PURPOSE

Length - Termination :

0.169 inch

Shell Material :

Steel

IEC Conformance :

No

PCB Contact Pattern :

STAGGERED

Insulation Material :

PBT

Feature :

Board Lock

ECCN Code :

EAR99

Voltage - Rated :

30VAC

Orientation :

Straight

Contact Finish Thickness :

Flash

Gender :

FEMALE

Body Breadth :

0.494 inch

Body Length or Diameter :

1.541 inch

MIL Conformance :

No

RoHS Status :

RoHS Compliant

Termination :

Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Form :

Stamped

Shell Finish :

Tin

Number of Positions :

26

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

JESD-609 Code :

e4

Flange Feature :

Board Side (4-40); Mating Side, Female Screwlock (4-40)

Published :

2011

PCB Contact Row Spacing :

1.9812 mm

Reference Standard :

UL

Packaging :

Tray

Connector Style :

D-Sub, High Density

Empty Shell :

No

Dielectric Withstanding Voltage :

1000VAC V

Pbfree Code :

yes

Series :

K86X

Operating Temperature :

-55°C~75°C

DIN Conformance :

No

Mixed Contacts :

No

Factory Lead Time :

20 Weeks
