JR16RK-7P

Share

Or copy the link below:

Mfr.Part #
JR16RK-7P
Manufacturer
Hirose
Package / Case
Datasheet
Download
Description
CONN RCPT MALE 7P SILV SLDR CUP
Stock
25
In Stock :
25

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Hirose
Product Category :
Circular Connector Assemblies
Contact Style :
RND PIN-SKT
Insulation Resistance :
1000000000Ohm
Published :
2004
Mounting Type :
Panel Mount
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Insert Material :
Phenol Formaldehyde (PF)
Mounting Feature :
Flange
Orientation :
Keyed
Reference Standard :
UL
Shielding :
Unshielded
Reliability :
COMMERCIAL
Body Length or Diameter :
1.142 inch
Termination :
Solder Cup
Radiation Hardening :
No
IEC Conformance :
No
Shell Material :
Aluminum Alloy
Contact Resistance :
5mOhm
Polarization Key :
POLARIZED HOUSING
Option :
GENERAL PURPOSE
Body Breadth :
1.142 inch
Shell Finish :
Nickel
Contact Material :
COPPER ALLOY
Dielectric Withstanding Voltage :
1000VAC V
Voltage - Rated :
250VAC 350VDC
Contact Finish - Mating :
Silver
JESD-609 Code :
e4
Number of Positions :
7
Pbfree Code :
yes
Mixed Contacts :
No
Additional Feature :
SOLDERING TYPE
Packaging :
Bulk
MIL Conformance :
No
Total Number of Contacts :
7
Cable Opening :
0.783 (19.90mm)
RoHS Status :
RoHS Compliant
Contact Finish Thickness - Mating :
118.1μin 3.00μm
Fastening Type :
Threaded
Operating Temperature :
-25°C~85°C
DIN Conformance :
No
Voltage - Rated AC :
250V
Number of Ports :
1
Shell Size - Insert :
16
Connector Type :
Receptacle, Male Pins
Filter Feature :
No
Empty Shell :
No
Factory Lead Time :
10 Weeks
Series :
JR
Material Flammability Rating :
UL94 V-0
Backshell Type :
Solid
Mount :
Flanges, Panel
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Current Rating :
10A
Contact Gender :
FEMALE
Datasheets
JR16RK-7P
Introducing Circular Connector Assemblies Hirose JR16RK-7P from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Panel Mount, Operating Temperature:-25°C~85°C, JR16RK-7P pinout, JR16RK-7P datasheet PDF, JR16RK-7P amp .Beyond Circular Connector Assemblies Hirose JR16RK-7P ,we also offer SD-80, PD-40, 1658998-1, Our vast inventory has you covered. Contact us now for immediate solutions.

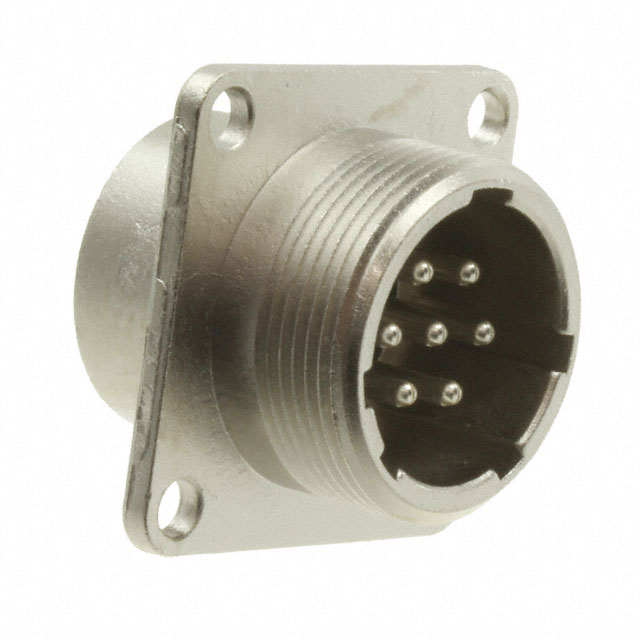

Hirose JR16RK-7P


Receptacle, Male Pins Aluminum Alloy Panel Mount 7 Positions Solder Cup Silver Nickel Bulk Keyed Threaded

JR16RK-7P Overview


The product comes in a package of Receptacle, Male Pins.Panel Mount is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the JR Series.Among other features are SOLDERING TYPE, to name only a few.It is mounted by Flanges, Panel.It operates at an operating temperature of -25°C~85°C.

JR16RK-7P Features


JR series


JR16RK-7P Applications


There are a lot of Hirose Electric Co Ltd
JR16RK-7P Circular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
