JR16JK-10P

Share

Or copy the link below:

Mfr.Part #
JR16JK-10P
Manufacturer
Hirose
Package / Case
Datasheet
Download
Description
CONN JACK MALE 10P SOLDER CUP
Stock
39
In Stock :
39

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Hirose
Product Category :
Circular Connector Assemblies
MIL Conformance :
No
Contact Finish - Mating :
Silver
Number of Positions :
10
Connector Type :
Jack, Male Pins
Material Flammability Rating :
UL94 V-0
Total Number of Contacts :
10
Fastening Type :
Threaded
JESD-609 Code :
e4
Mixed Contacts :
No
Backshell Type :
Solid
RoHS Status :
RoHS Compliant
Packaging :
Bulk
Mount :
Free Hanging
Operating Temperature :
-25°C~85°C
Contact Material :
COPPER ALLOY
Shell Material :
Aluminum Alloy
Feature :
Backshell, Cable Clamp
Published :
2014
Series :
JR
Filter Feature :
No
Voltage - Rated :
250VAC 350VDC
Shell Size - Insert :
16
Factory Lead Time :
10 Weeks
Shell Finish :
Nickel
Length :
48.5mm
Max Current Rating :
5A
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
IEC Conformance :
No
Current Rating :
5A
Pbfree Code :
yes
Empty Shell :
No
Orientation :
Keyed
DIN Conformance :
No
Radiation Hardening :
No
Mounting Type :
Free Hanging (In-Line)
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Option :
GENERAL PURPOSE
Shielding :
Unshielded
Termination :
Solder Cup
Body/Shell Style :
Receptacle
Lead Free :
Lead Free
Datasheets
JR16JK-10P
Introducing Circular Connector Assemblies Hirose JR16JK-10P from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-25°C~85°C, Mounting Type:Free Hanging (In-Line), JR16JK-10P pinout, JR16JK-10P datasheet PDF, JR16JK-10P amp .Beyond Circular Connector Assemblies Hirose JR16JK-10P ,we also offer SD-80, PD-40, 1658998-1, Our vast inventory has you covered. Contact us now for immediate solutions.

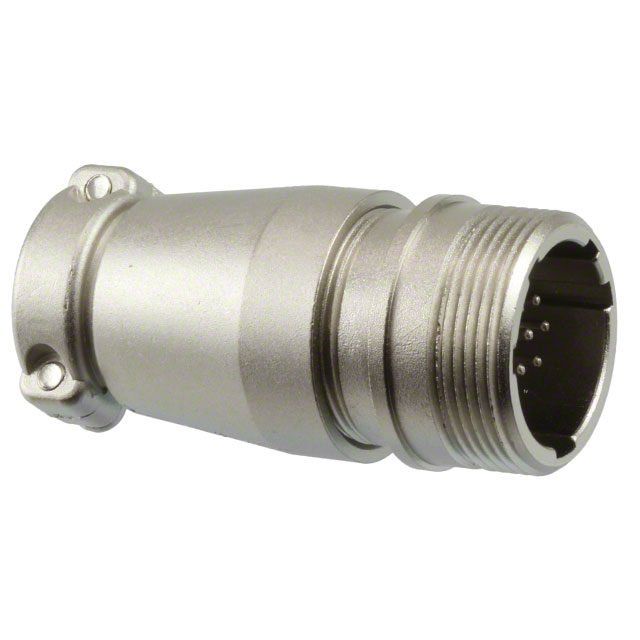

Hirose JR16JK-10P


Jack, Male Pins Aluminum Alloy Free Hanging (In-Line) 10 Positions Solder Cup Silver Nickel Bulk Keyed Threaded

JR16JK-10P Overview


The packaging contains Jack, Male Pins.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number JR belongs to the JR Series.In many ways, it is more powerful due to its Backshell, Cable Clamp feature.There is a Free Hanging mount on the part.This device operates at a temperature of -25°C~85°C.

JR16JK-10P Features


JR series


JR16JK-10P Applications


There are a lot of Hirose Electric Co Ltd
JR16JK-10P Circular Connectors applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
