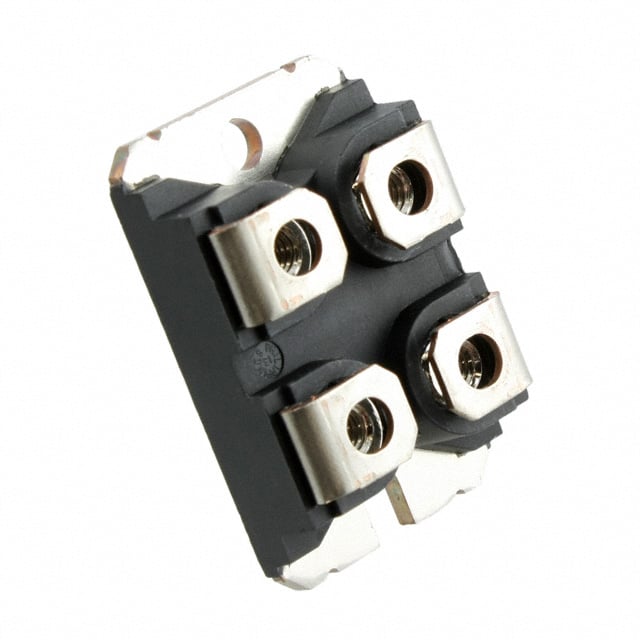

IXGN60N60C2D1

Manufacturer :

Littelfuse

Product Category :

Transistors - IGBTs - Modules

Collector-Emitter Voltage-Max :

600 V

Base Part Number :

IXG*60N60

Mount :

Chassis Mount, Screw

Pbfree Code :

yes

Input Capacitance :

4.75nF

Additional Feature :

LOW CONDUCTION LOSS, UL RECOGNIZED

Surface Mount :

No

Package Shape :

RECTANGULAR

Power - Max :

480W

Height :

9.6mm

Package :

Tube

JESD-30 Code :

R-PUFM-X4

Input :

Standard

Lead Free :

Lead Free

VCEsat-Max :

2.5 V

NTC Thermistor :

No

Current - Collector Cutoff (Max) :

650μA

Input Capacitance (Cies) @ Vce :

4.75nF @ 25V

Current - Collector (Ic) (Max) :

75A

Pin Count :

4

Length :

38.2mm

Continuous Collector Current :

75A

Series :

HiPerFAST™

Power Dissipation-Max (Abs) :

480 W

Turn On Delay Time :

18 ns

Qualification Status :

Not Qualified

Terminal Finish :

Nickel (Ni)

Vce(on) (Max) @ Vge, Ic :

2.5V @ 15V, 50A

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Manufacturer :

IXYS

Supplier Device Package :

SOT-227B

Product Status :

Obsolete

Weight :

38.000013g

Mounting Type :

Chassis Mount

Max Power Dissipation :

480W

Turn On Time :

43 ns

Gate-Emitter Voltage-Max :

20V

Base Product Number :

IXGN60

Turn-Off Delay Time :

95 ns

Transistor Application :

POWER CONTROL

Reach Compliance Code :

Compliant

Width :

25.07mm

Operating Temperature :

-55°C~150°C TJ

Voltage - Collector Emitter Breakdown (Max) :

600V

RoHS Status :

RoHS Compliant

Polarity/Channel Type :

N-Channel

Number of Pins :

4

Published :

2004

Turn Off Time-Nom (toff) :

210 ns

Collector Emitter Breakdown Voltage :

600V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Configuration :

Single

IGBT Type :

PT

Case Connection :

Isolated

Transistor Element Material :

SILICON

Terminal Form :

UNSPECIFIED

Collector Emitter Saturation Voltage :

2.5V

Package / Case :

SOT-227-4, miniBLOC

Collector Current-Max (IC) :

75 A

Terminal Position :

UPPER

Number of Terminals :

4

Max Collector Current :

100A

Number of Terminations :

4

Collector Emitter Voltage (VCEO) :

600V

Number of Elements :

1
