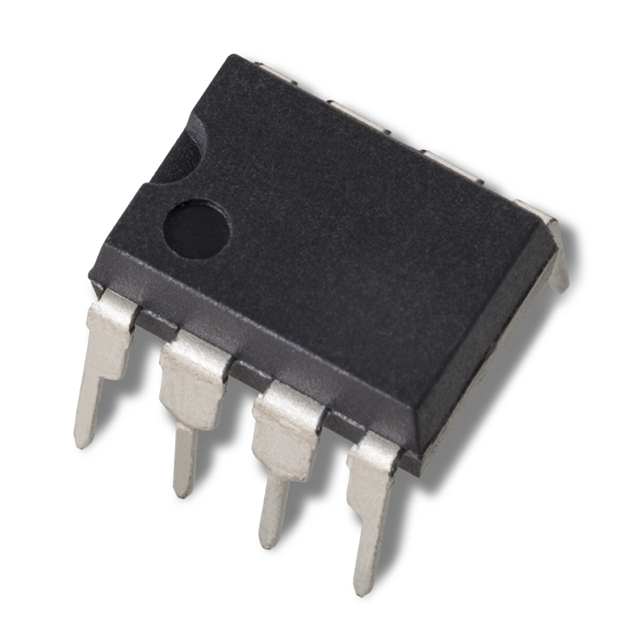

IT121 PDIP 8L

Manufacturer :

Linear Integrated Systems, Inc.

Product Category :

Transistors - Bipolar (BJT) - Arrays

Base Product Number :

IT121

Vce Saturation (Max) @ Ib, Ic :

500mV @ 50µA, 500µA

Mounting Type :

Surface Mount

Voltage - DC Reverse (Vr) (Max) :

80V

Voltage - Collector Emitter Breakdown (Max) :

45V

Operating Temperature - Junction :

-55°C ~ 175°C

Current - Collector Cutoff (Max) :

1nA (ICBO)

Current - Reverse Leakage @ Vr :

1.5mA @ 80V

Current - Average Rectified (Io) (per Diode) :

40A

Supplier Device Package :

D-61-8-SL

Operating Temperature :

-55°C ~ 150°C

Speed :

Fast Recovery = 200mA (Io)

Series :

--

Current - Collector (Ic) (Max) :

10mA

Diode Configuration :

1 Pair Common Cathode

Transistor Type :

2 NPN (Dual)

Package :

Tube

Voltage - Forward (Vf) (Max) @ If :

810mV @ 40A

Package / Case :

D-61-8-SL

Diode Type :

Schottky

Packaging :

Tube

Product Status :

Active

Power - Max :

500mW

Frequency - Transition :

180MHz

DC Current Gain (hFE) (Min) @ Ic, Vce :

100 @ 1mA, 5V
