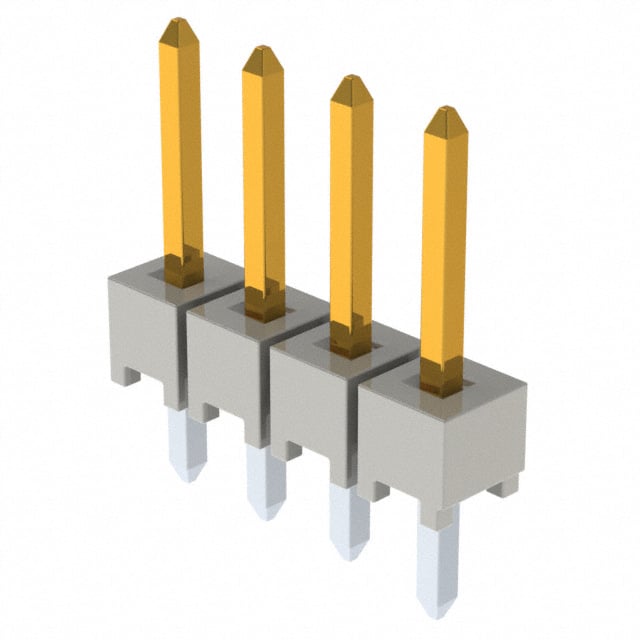

HTSW-104-07-FM-S

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Fastening Type :

Push-Pull

Overall Contact Length :

0.430 10.92mm

ECCN Code :

EAR99

Number of Positions Loaded :

All

Material Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole

Reliability :

COMMERCIAL

Packaging :

Bulk

Mount :

Through Hole

Operating Temperature :

-55°C~125°C

Mixed Contacts :

No

Contact Finish - Mating :

Gold

Contact Finish Thickness - Mating :

3.00μin 0.076μm

Factory Lead Time :

3 Weeks

Body Breadth :

0.098 inch

Radiation Hardening :

No

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Conductors :

ONE

Series :

HTSW

Current Rating (Amps) :

Varies by WireGAuge

Termination :

Solder

IEC Conformance :

No

DIN Conformance :

No

Filter Feature :

No

Insulation Material :

Liquid Crystal Polymer (LCP)

Shrouding :

Unshrouded

Number Of PCB Rows :

1

Style :

Board to Board or Cable

JESD-609 Code :

e3

Insulation Height :

0.100 2.54mm

Number of Positions :

4

Insulation Color :

Natural

RoHS Status :

ROHS3 Compliant

MIL Conformance :

No

Contact Material :

Phosphor Bronze

PCB Contact Pattern :

RECTANGULAR

Number of Rows :

1

Contact Length - Post :

0.100 2.54mm

Option :

GENERAL PURPOSE

Contact Length - Mating :

0.230 5.84mm

Contact Type :

Male Pin

Gender :

Male

Contact Shape :

Square

Connector Type :

Header

Pitch - Mating :

0.100 2.54mm

Contact Finish - Post :

Tin
